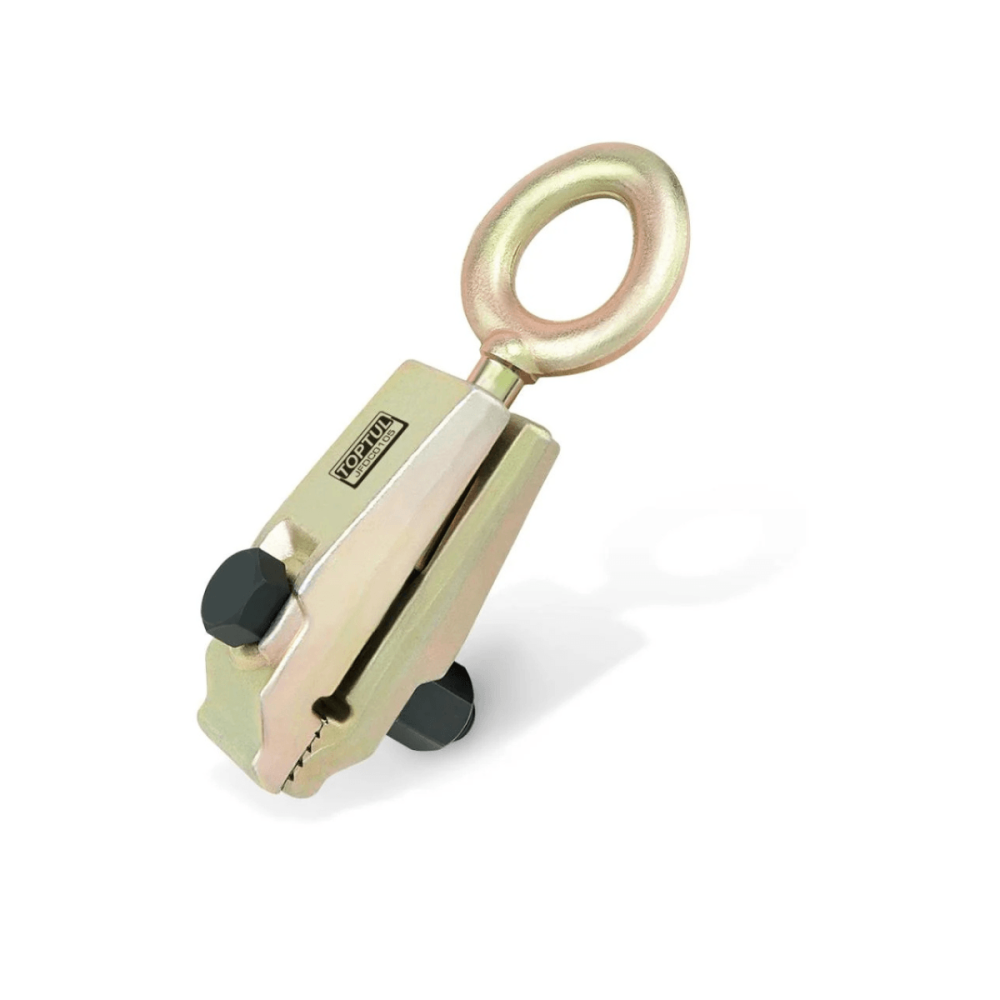

Complete vehicle body-pulling work in confined areas with the TOPTUL JFDC0105 Small Mouth Pull Clamp, designed for professional body shops and collision-repair technicians.
The clamp features a narrow small-mouth design that allows it to grip body-panel edges and sections where larger pulling clamps may be difficult to install. Its single-way pulling configuration provides a direct and controlled attachment point for body-straightening operations.
With a rated pulling capacity of 5 tons, the clamp is suitable for demanding sheet-metal and vehicle-frame repair work. It is manufactured from drop-forged chrome molybdenum alloy steel to withstand high pulling forces and repeated professional use.
Key Features
- Rated pulling capacity of 5 tons.
- Small-mouth design for confined spaces.
- Single-way pulling operation.
- Strong gripping surface for secure panel attachment.
- Made from drop-forged chrome molybdenum alloy steel.
- Suitable for heavy-duty auto body repair.
- Compatible with suitable body-pulling chains and equipment.
- Durable construction for professional workshop use.
- Genuine TOPTUL auto body tool.
Applications
- Pulling damaged vehicle body sections.
- Gripping and pulling sheet-metal edges.
- Repairing dents and distortion in confined areas.
- Vehicle chassis and body-frame repair.
- Use with body-straightening racks and pulling equipment.
- Professional collision and auto body repair work.
Technical Specifications
- Brand: TOPTUL.
- Product Number: JFDC0105.
- Product Type: Small Mouth Pull Clamp.
- Pulling Direction: Single-Way Pull.
- Pulling Capacity: 5 Tons.
- Bolt Size: Ø17 mm × 80 mm Long.
- Gripping Surface Width: 44 mm.
- Gripping Surface Depth: 24 mm.
- Material: Chrome Molybdenum Alloy Steel.
- Manufacturing Method: Drop Forged.
- Recommended Use: Auto Body and Vehicle-Frame Pulling.
Package Contents
- 1 × TOPTUL 5-Ton Small Mouth Pull Clamp.
What Is the Benefit of a Small Mouth Pull Clamp?

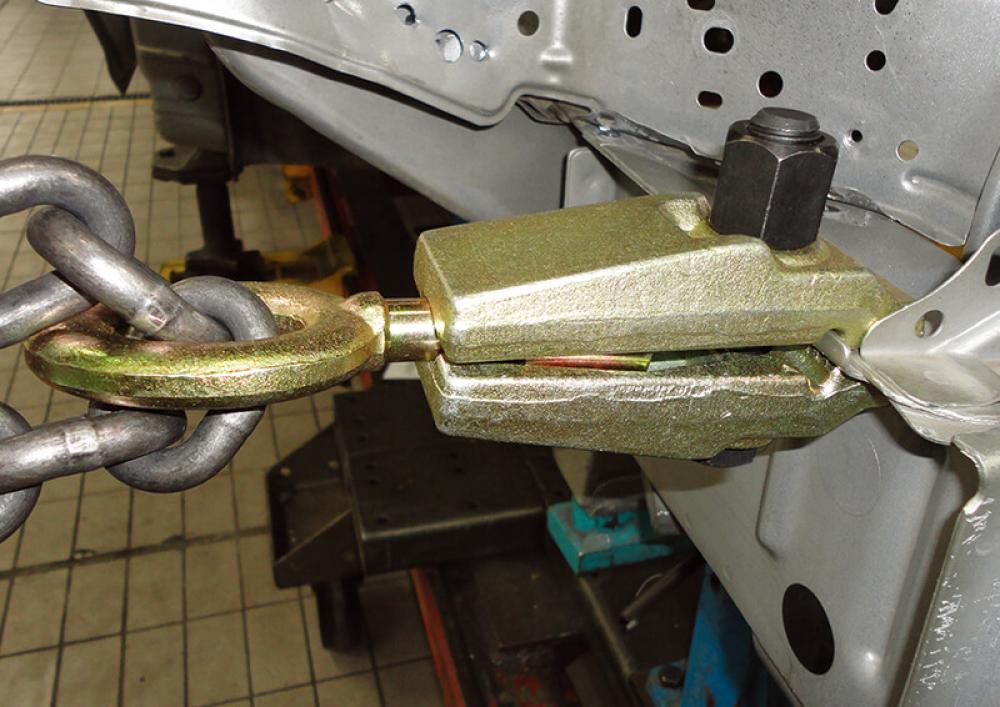

A small mouth pull clamp is used to grip a metal edge or body section before connecting it to suitable pulling equipment or a pulling chain.
Its narrow jaw design helps it reach confined areas where larger clamps cannot be installed easily. A strong and structurally sound gripping point must be selected to prevent the metal from tearing or separating during pulling.
How to Use the Auto Body Pull Clamp
- Inspect the damaged metal section and determine the required pulling direction.
- Select a strong attachment point that can withstand the pulling force.
- Open the clamp and position it over the metal edge.
- Tighten the bolt until the gripping surfaces are securely attached.
- Connect the clamp to a compatible pulling chain or body-straightening system.
- Apply the pulling force gradually without sudden shock loading.
- Monitor the clamp and vehicle body throughout the operation.
- Never exceed the rated pulling capacity of 5 tons.
- Wear suitable eye and hand protection and keep people away from the pulling path.
Frequently Asked Questions
Is this product a pulling ring or a pulling clamp?
Some users may refer to it as a pulling ring, but the correct technical description is a pull clamp. It grips the metal body section and connects it to a pulling chain or system.
Is it suitable for confined areas?
Yes. Its small-mouth design is specifically intended for restricted spaces where larger clamps are difficult to install.
What is the maximum pulling capacity?
The rated pulling capacity is 5 tons and must not be exceeded.
Is it a two-way pulling clamp?
No. This model is designed for single-way pulling. A separate two-way version is available for applications that require it.
Can it be used without pulling equipment?
No. The clamp serves as an attachment and gripping point and must be connected to a compatible chain, frame rack, or body-pulling system.
