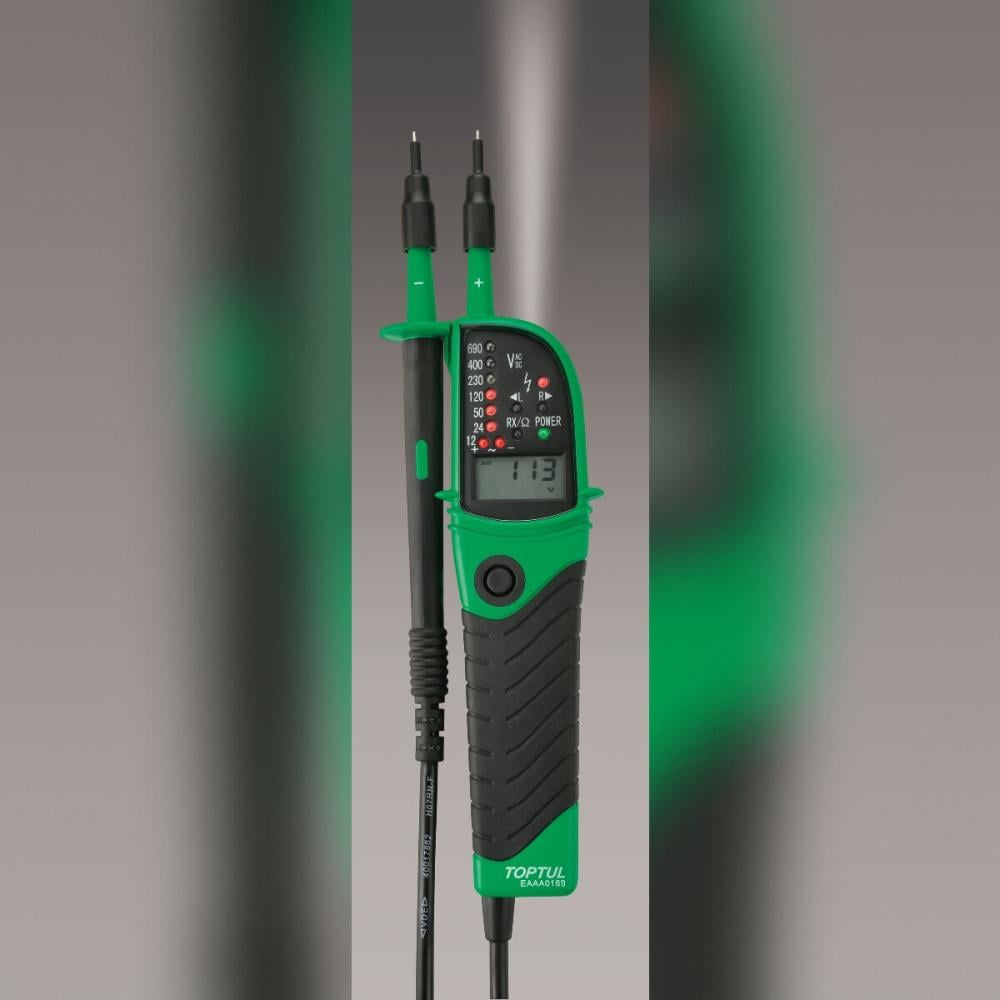

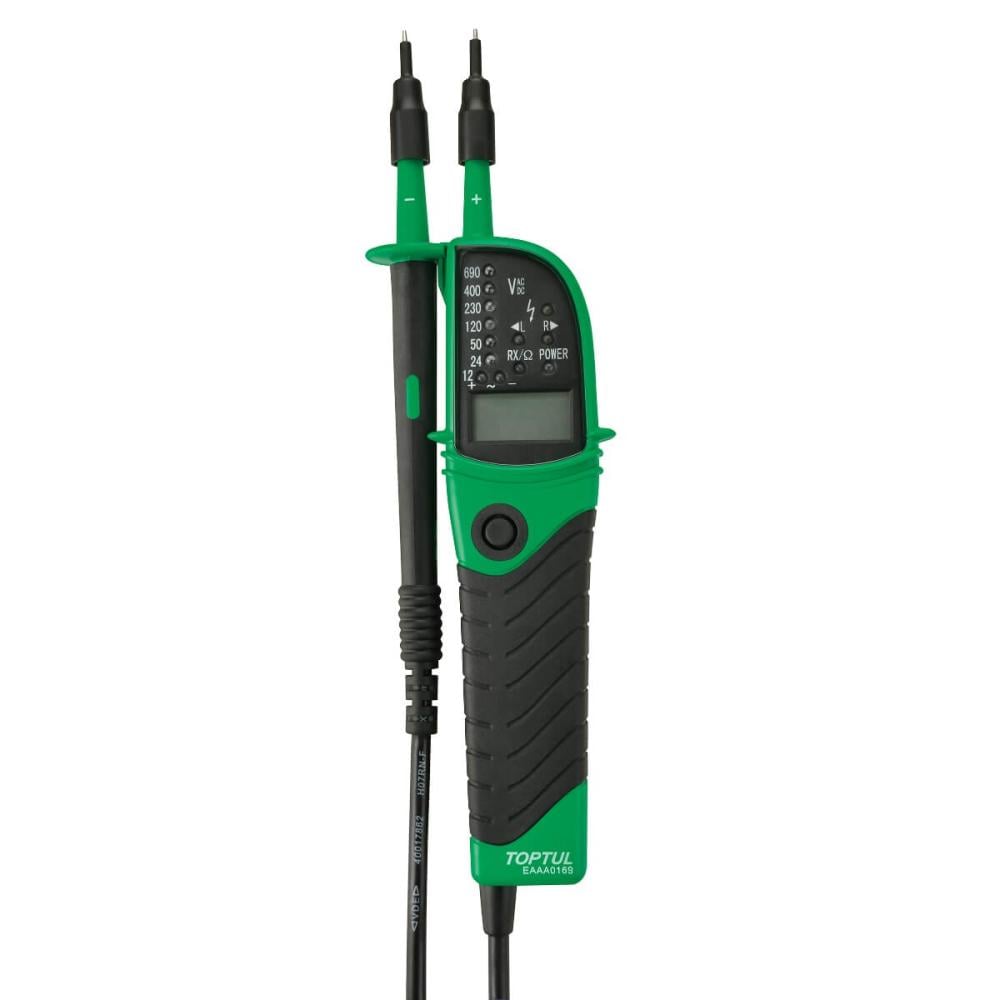

The TOPTUL EAAA0169 Multifunction Digital Voltage Tester is designed for electricians and maintenance professionals who need fast and clear AC/DC voltage testing.
It measures voltage from 12 to 690V and displays results through stepped LED indicators and an LCD screen. It also supports continuity testing, polarity detection, and phase-rotation indication for three-phase systems.

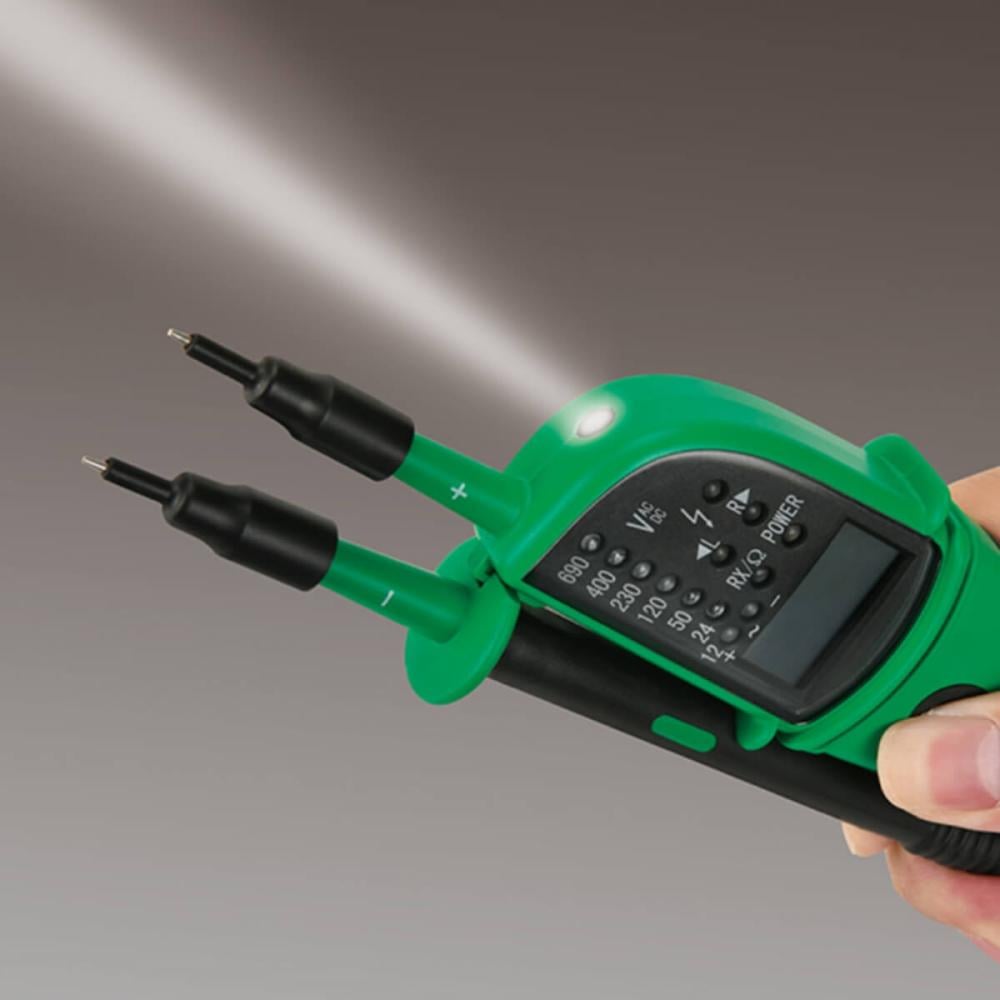

A high-voltage warning activates at approximately 50V or above, while the built-in flashlight supports work in dark areas. The IP64 housing provides protection against dust and water splashes.
Key Features
- AC/DC voltage testing from 12 to 690V.
- LED and LCD dual display.
- Acoustic and optical continuity test.
- Positive and negative polarity detection.
- Phase-rotation indication.
- High-voltage warning above approximately 50V.
- Built-in flashlight.
- IP64 protection.
- CAT III 690V and CAT IV 600V rating.
- Powered by two AAA batteries.
Technical Specifications
- Brand: TOPTUL.
- Product Number: EAAA0169.
- Voltage Range: 12–690V AC/DC.
- Frequency Range: 0–70Hz AC.
- LED Indication: 12/24/50/120/230/400/690V.
- LCD Range: 7–690V.
- Continuity Test: 0–550kΩ.
- Protection Rating: IP64.
- Safety Category: CAT III 690V / CAT IV 600V.
- Power Supply: 2 × AAA Batteries.
- Batteries: Not Included.
Frequently Asked Questions
What is this voltage tester used for?

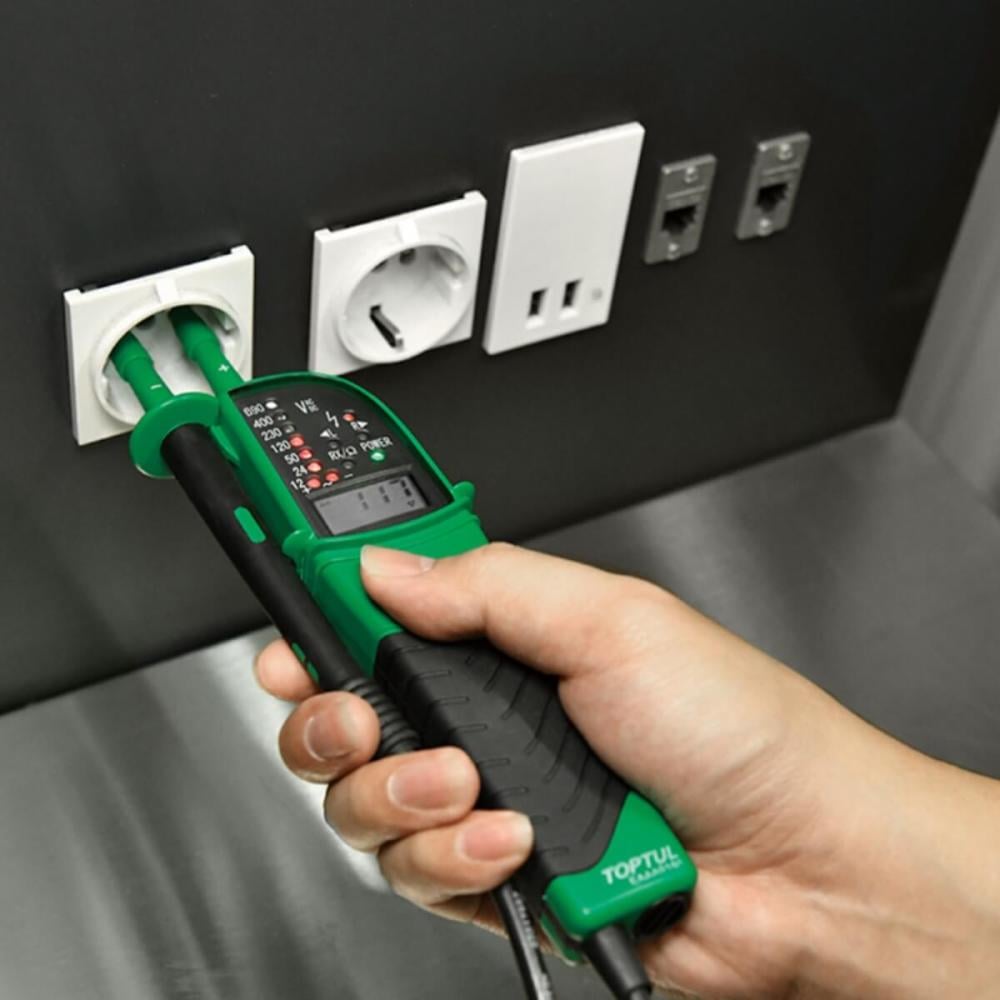

It is used to test AC/DC voltage, continuity, polarity, and phase rotation in electrical systems.
Is it a full multimeter?
No. It is primarily a multifunction voltage tester and does not replace a multimeter for current and resistance measurements.
Can it test three-phase systems?

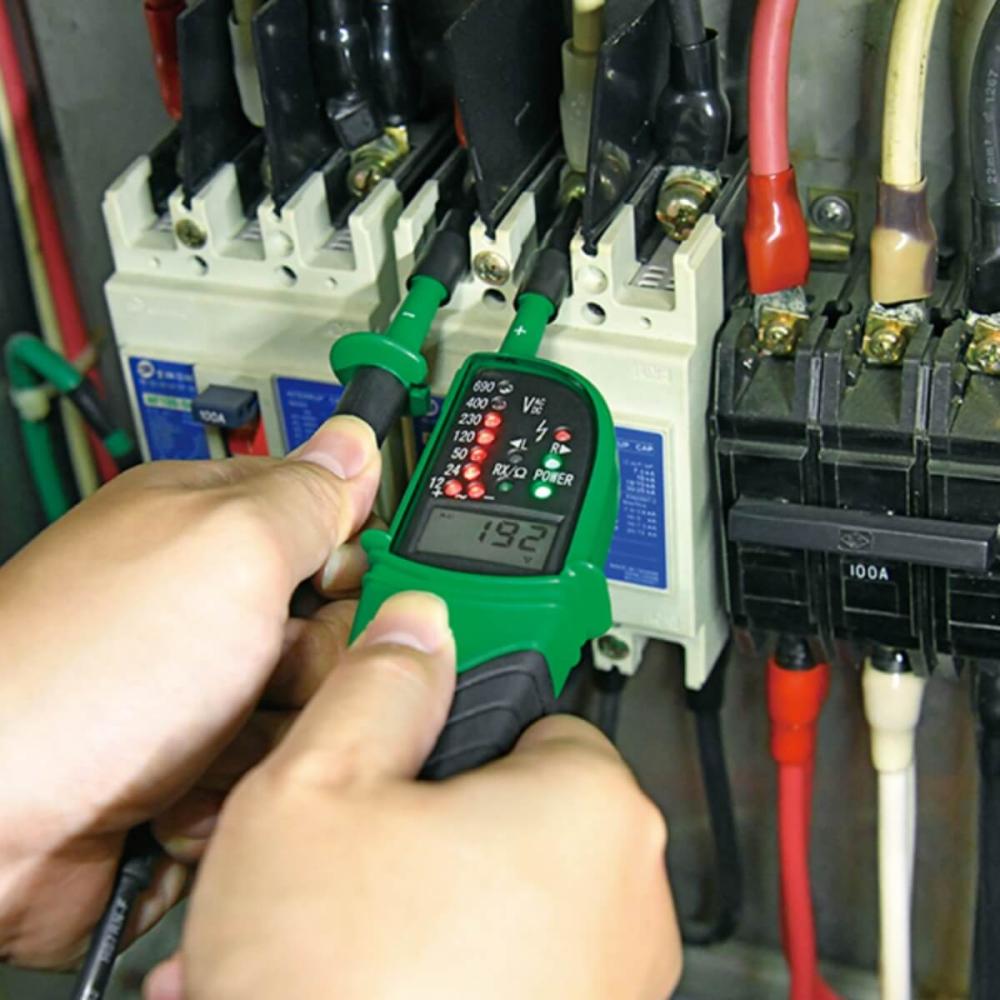

Yes. It includes a phase-rotation indicator for three-phase electrical systems.
Is it waterproof?
It has IP64 protection against dust and water splashes but should not be submerged.
