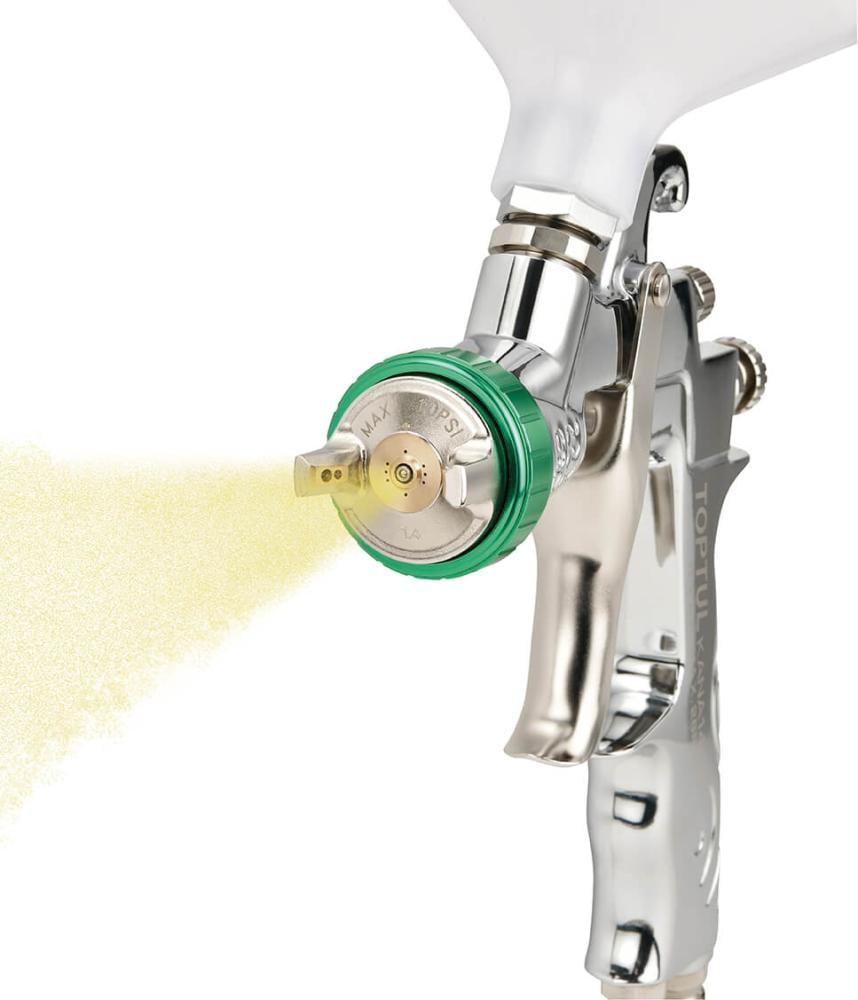

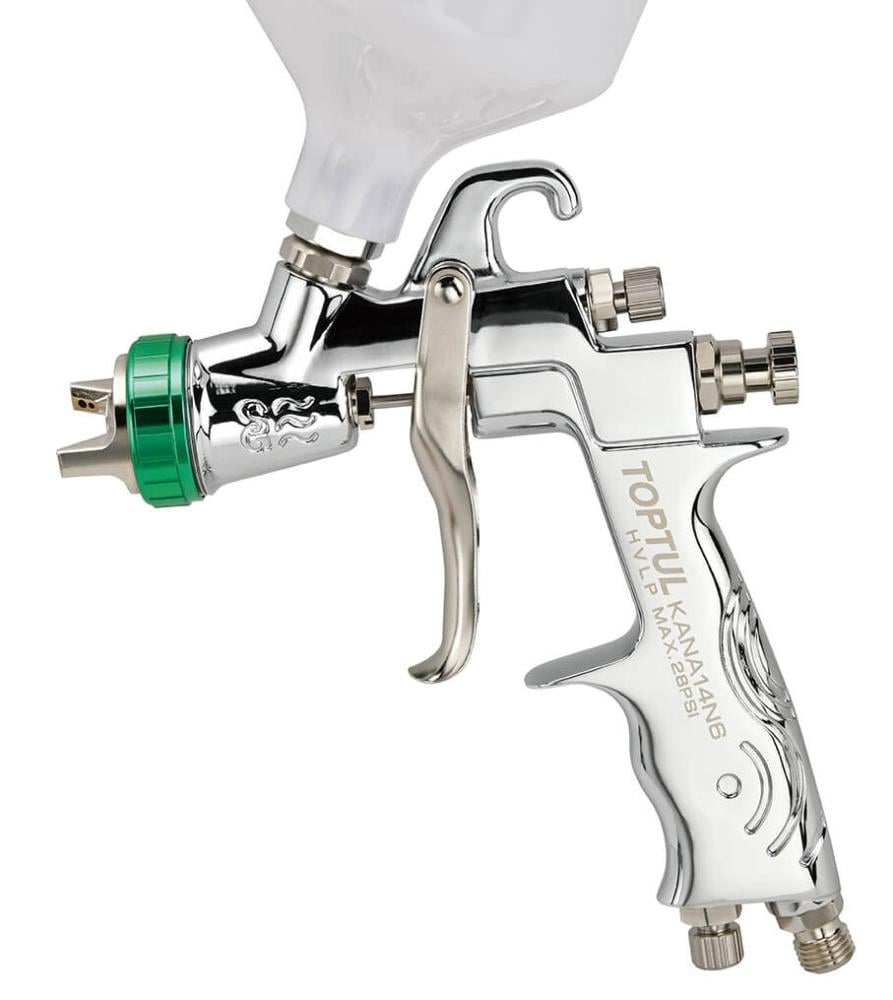

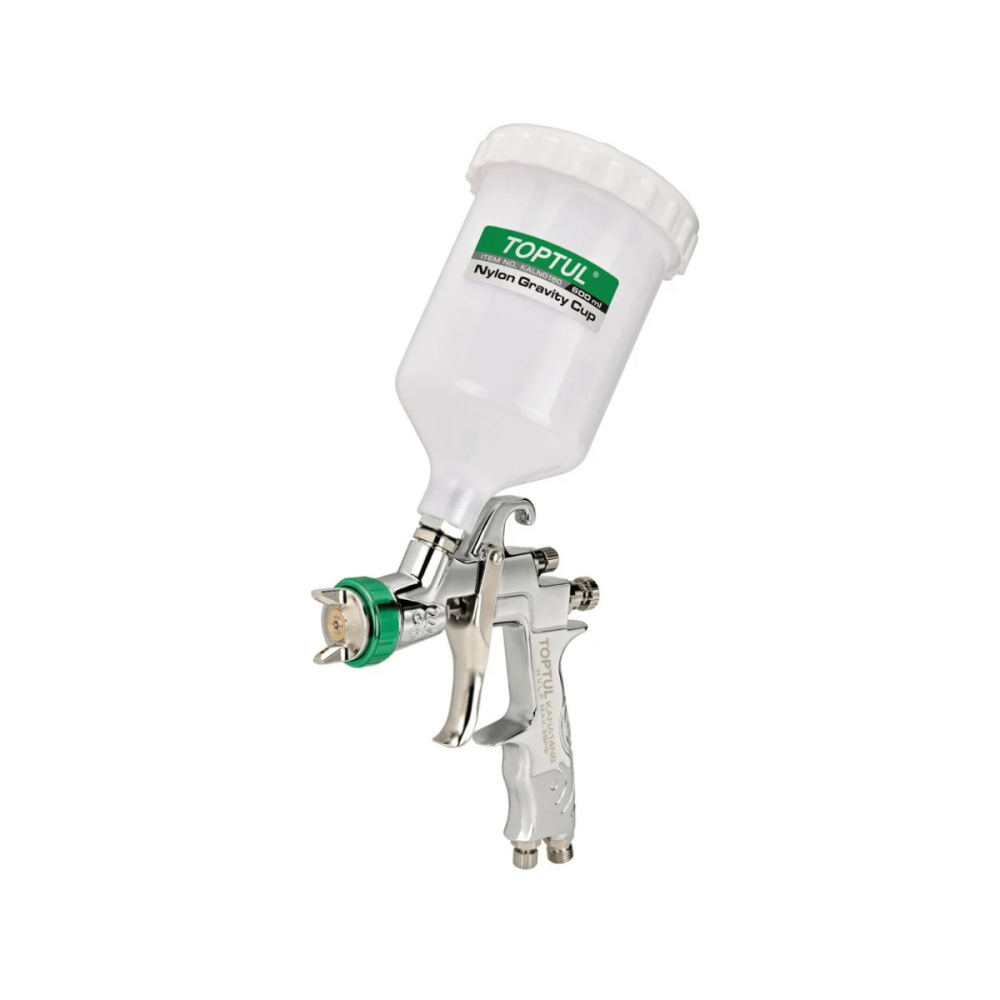

The TOPTUL KANA14N6 HVLP Gravity Feed Spray Gun is designed for controlled and professional paint application in automotive, furniture, workshop, and finishing jobs.
Its HVLP system uses high air volume at low pressure to help reduce over-spray and material waste. The gun includes a 600 ml nylon gravity cup and a standard 1.4 mm nozzle, making it suitable for many top-coat applications.
Separate air and paint-flow controls allow fine adjustment, while the round and flat fan control makes it easy to adapt the spray pattern to different surfaces.
Key Features
- HVLP system for reduced over-spray.
- 600 ml nylon gravity-feed cup.
- Standard 1.4 mm nozzle.
- Adjustable air and paint flow.
- Round and flat spray-pattern control.
- Brass air cap.
- Stainless-steel needle and nozzle.
- Spray width up to 310 mm.
- Suitable for professional finishing work.
Technical Specifications
- Brand: TOPTUL.
- Product Number: KANA14N6.
- Feed Type: Gravity.
- Cup Capacity: 600 ml.
- Standard Nozzle: 1.4 mm.
- Optional Nozzles: 1.0–2.5 mm.
- Fluid Output: 150 ml/min.
- Pattern Width: 310 mm.
- Working Pressure: 15–28 PSI.
- Air Consumption: 12 CFM.
- Air Inlet: 1/4 inch PF.
- Gun Weight: 514 g.
Frequently Asked Questions
Is it suitable for automotive paint?
Yes. The 1.4 mm setup is suitable for many automotive top-coat applications when used with compatible paint materials.
What compressor capacity is required?
The compressor should be able to supply approximately 12 CFM while maintaining the recommended working pressure.
Are other nozzle sizes available?
Optional nozzle sizes from 1.0 to 2.5 mm are listed for this model, subject to availability.
