The TOPTUL Economy Handheld Tire Pressure Gauge provides a simple and practical way to check tire pressure during routine vehicle maintenance.

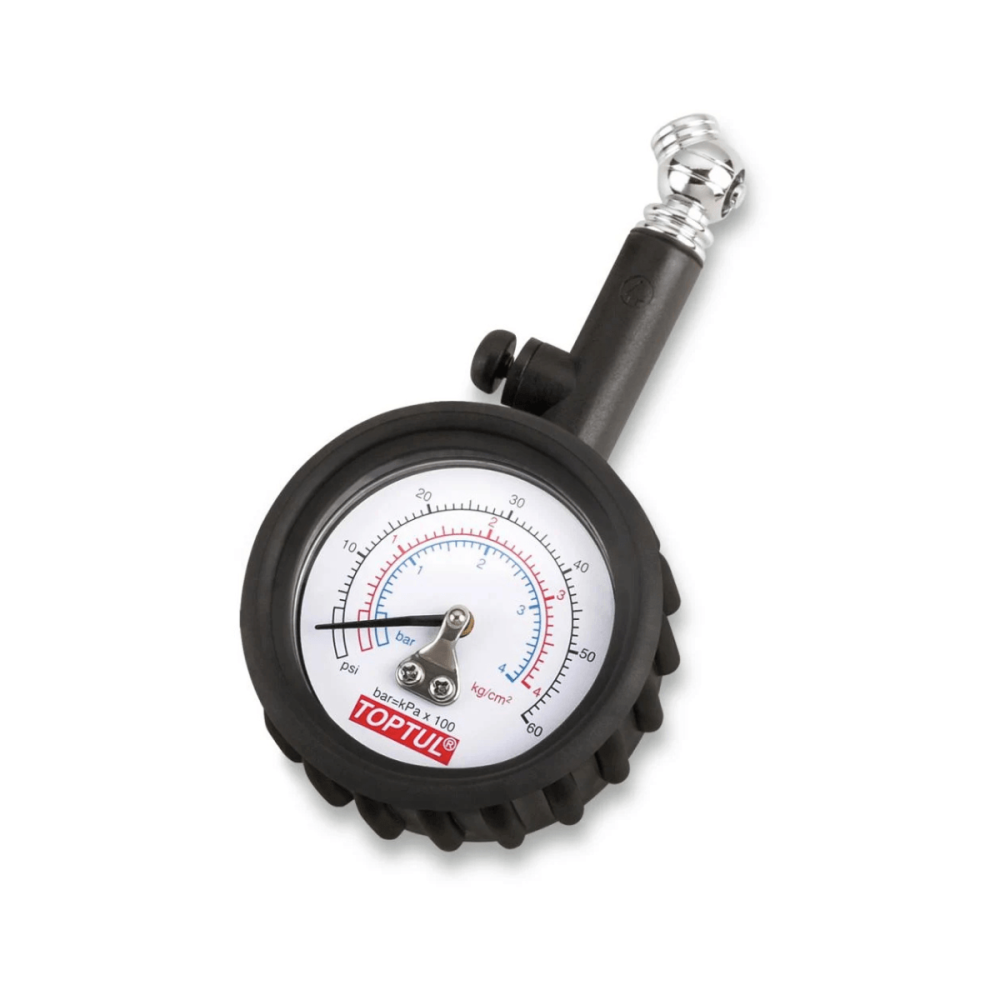

It features a clear 2-inch analogue dial with three measurement scales: PSI, BAR, and kg/cm². The gauge measures tire pressure up to 60 PSI, making it suitable for many passenger cars and motorcycles.

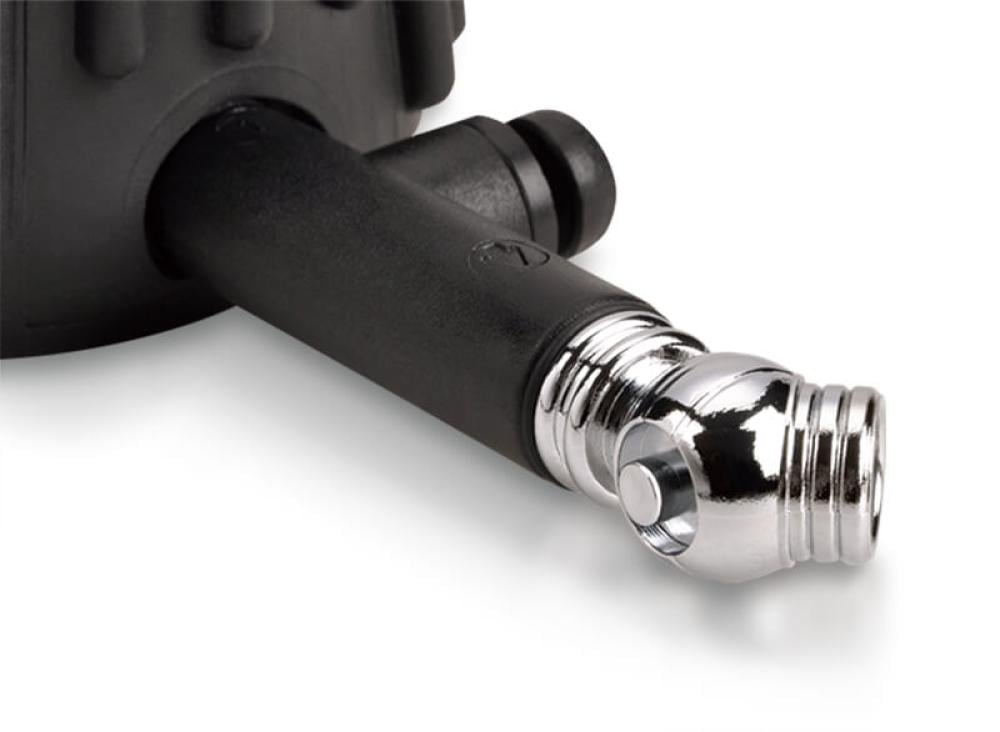

- The 45-degree angled chuck helps the user connect the gauge to tire valves more comfortably, including valves positioned in restricted or awkward locations. A protective rubber cover surrounds the dial to reduce the risk of damage from minor impacts during use or storage.
- The gauge also includes a reset button and a built-in air bleeder valve. The bleeder allows the user to release excess tire pressure gradually, while the reset button returns the pointer to zero before the next measurement.
Compact, lightweight, and battery-free, the TOPTUL JEAP060A is suitable for home garages, personal vehicle maintenance, automotive workshops, and storage inside a vehicle tool kit.
Key Features
- Designed for checking car and motorcycle tire pressure.
- Clear 2-inch analogue pressure gauge.
- Measuring range up to 60 PSI.
- Displays readings in PSI, BAR, and kg/cm².
- 45-degree angled head for easier valve access.
- Reset button for quick gauge preparation.
- Built-in air bleeder for releasing excess pressure.
- Protective rubber gauge cover.
- Lightweight and portable design.
- No batteries or electrical power required.
- Suitable for routine tire maintenance.
- Conforms to ANSI B40.1 Grade B accuracy standard.
- Professional tool from TOPTUL.
Recommended Applications
- Checking passenger car tire pressure.
- Measuring motorcycle tire pressure.
- Routine tire inspections.
- Checking tires before long journeys.
- Releasing small amounts of excess tire pressure.
- Home garage and personal maintenance.
- Automotive workshop use.
- Tire service center inspections.
- Keeping inside a vehicle emergency or tool kit.
Technical Specifications
- Brand: TOPTUL.
- Product Name: Economy Handheld Tire Pressure Gauge.
- Series: Economy Handy Series.
- Product Number: JEAP060A.
- Tool Type: Manual Analogue Tire Pressure Gauge.
- PSI Measuring Range: 0–60 PSI.
- BAR Measuring Range: 0–4 BAR.
- kg/cm² Measuring Range: 0–4 kg/cm².
- Gauge Diameter: 2 inches.
- Chuck Type: 45-Degree Angled Head.
- Reset Function: Available.
- Air Bleeder Valve: Available.
- Protective Cover: Rubber Gauge Protector.
- Accuracy Standard: ANSI B40.1 Grade B.
- Power Source: No Batteries Required.
- Recommended Use: Cars, motorcycles, garages, and routine tire maintenance.
Package Contents
- 1 × TOPTUL Manual Tire Pressure Gauge.
What Is a Tire Pressure Gauge?
A tire pressure gauge is a tool used to measure the air pressure inside a tire. The gauge head connects to the tire valve, and the pressure reading appears on the dial.
Maintaining the vehicle manufacturer’s recommended tire pressure supports safer handling, more even tire wear, and improved fuel efficiency.

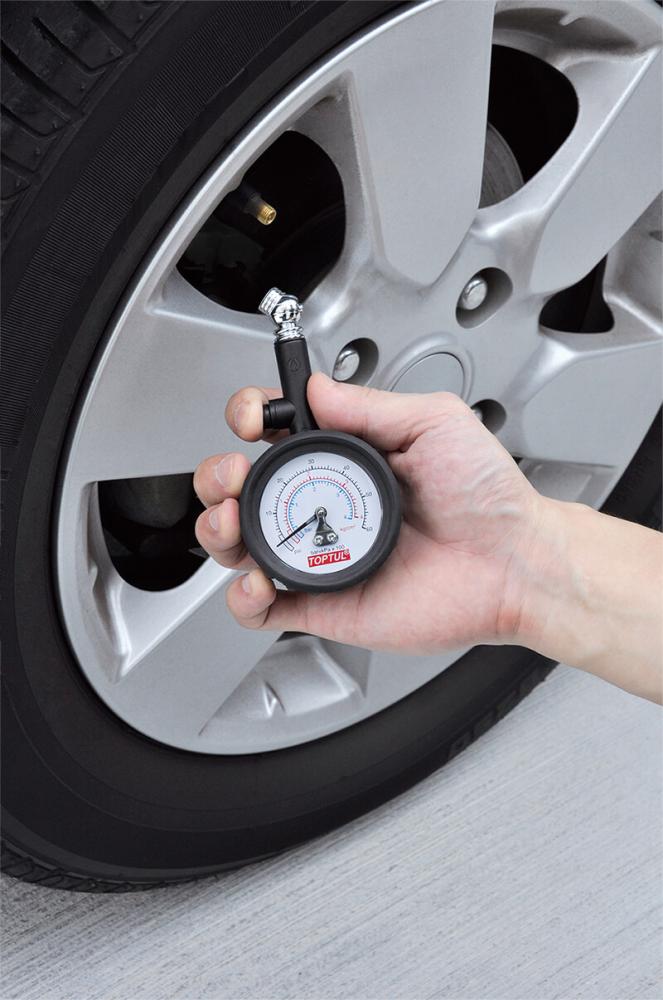

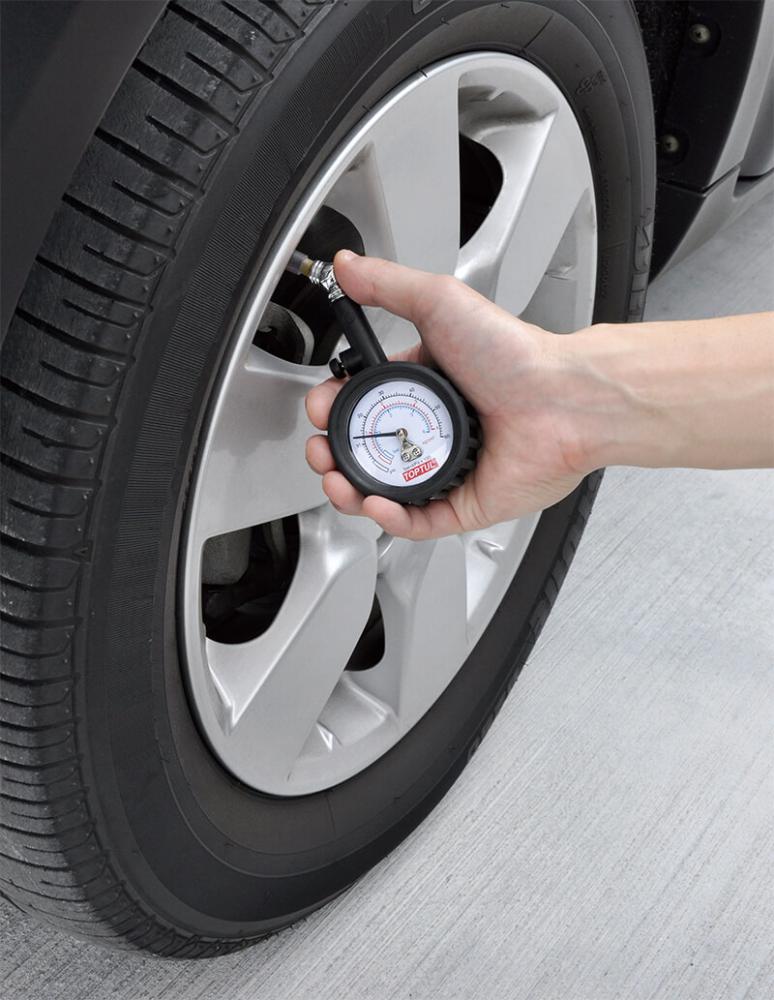

How to Use the Manual Tire Pressure Gauge
- Park the vehicle safely on a level surface.
- Check the tires when they are cold whenever possible.
- Remove the valve cap from the tire.
- Make sure the gauge pointer is set to zero.
- Press the 45-degree head firmly onto the tire valve.
- Wait for the gauge reading to stabilize.
- Compare the reading with the vehicle manufacturer’s recommended pressure.
- Use the air bleeder if the tire pressure is too high.
- Measure again to confirm the final pressure.
- Replace the tire valve cap.
How Do I Find the Correct Tire Pressure?
The recommended tire pressure varies according to the vehicle, tire size, and load. It is usually listed on:
- The driver’s door frame label.
- The vehicle owner’s manual.
- The fuel filler door on some vehicles.
The maximum pressure printed on the tire sidewall should not automatically be used as the normal operating pressure for the vehicle.
Why Check Tire Pressure Regularly?
Regular tire pressure checks can help:
- Improve vehicle handling and stability.
- Reduce uneven tire wear.
- Support better fuel efficiency.
- Identify slow air leaks.
- Reduce heat buildup caused by underinflation.
- Extend tire service life when the correct pressure is maintained.
Frequently Asked Questions
Is this gauge suitable for car tires?
Yes. It measures pressure up to 60 PSI and is suitable for many passenger car tires.
Can it be used for motorcycle tires?
Yes. It can be used for motorcycle tires when the required pressure is within the gauge’s measuring range.
Does the gauge require batteries?
No. It uses a mechanical analogue dial and does not require batteries or charging.
What is the purpose of the 45-degree head?
The angled head helps the user reach and connect to tire valves more easily, especially when the valve position is difficult to access.
What does the air bleeder valve do?
The built-in bleeder valve releases excess air from the tire gradually, helping the user adjust the pressure closer to the recommended value.
What does the reset button do?
The reset button returns the pointer to zero so the gauge is ready for the next pressure check.
Is it suitable for truck tires?
The gauge measures up to 60 PSI. Some truck and commercial vehicle tires require higher pressure, so the required tire pressure must be checked before using this gauge.
When should tire pressure be measured?
Tire pressure is best checked when the tires are cold, before driving or after the vehicle has been parked for several hours.
Why Choose the TOPTUL Tire Pressure Gauge?
The TOPTUL JEAP060A combines a clear dial, portable design, angled measuring head, reset function, and built-in air bleeder. It is a practical option for drivers and technicians who need a simple, battery-free tool for routine tire pressure checks.
