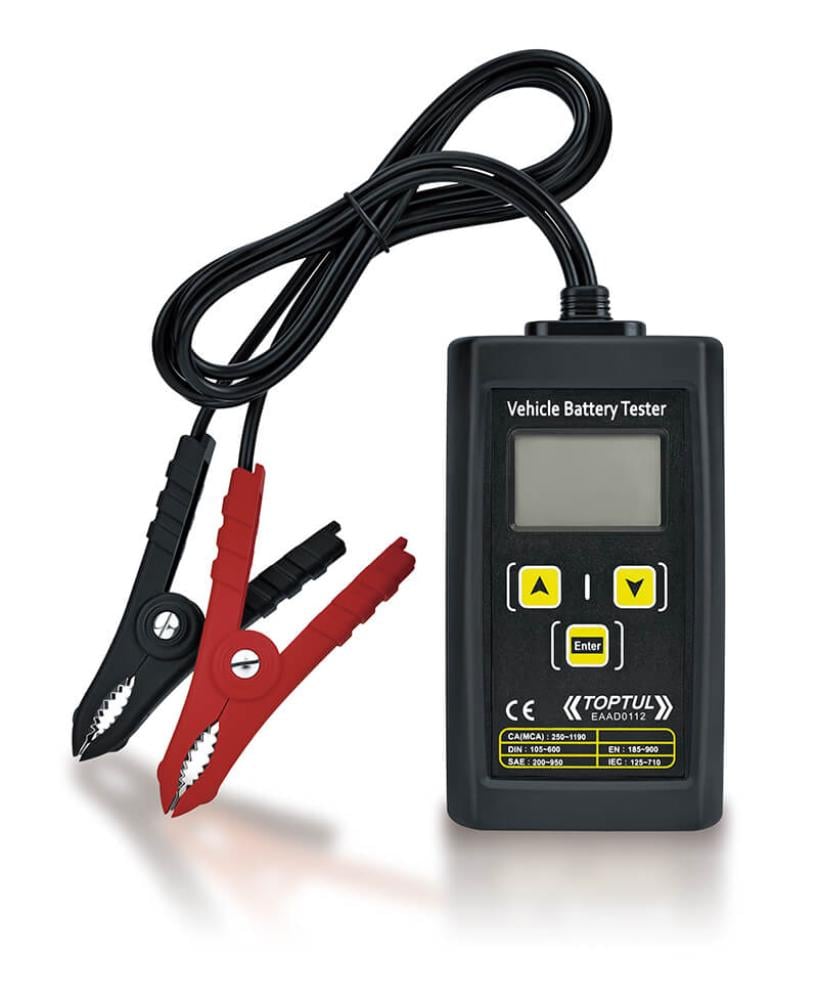

The TOPTUL EAAD0112 Digital Vehicle Battery Tester is designed to test 12V automotive batteries, starting systems, and charging systems.
It measures battery voltage, evaluates battery performance using CCA or CA ratings, checks engine cranking voltage, and measures charging-system voltage.
The tester supports lead-acid, maintenance-free, AGM, and EFB batteries. Its illuminated LCD screen and 0.85-metre cable make it practical for workshops, service centres, and personal vehicle diagnostics.
Key Features
- Designed for 12V vehicle batteries.
- Tests battery, starting, and charging systems.
- Supports SAE, DIN, EN, IEC, and CA standards.
- Compatible with lead-acid, AGM, and EFB batteries.
- Illuminated LCD display.
- Quick results after entering the rated CCA or CA value.
- 0.85-metre test cable.
- Compact and lightweight design.
Technical Specifications
- Brand: TOPTUL.
- Product Number: EAAD0112.
- Rated Battery Voltage: 12V.
- Voltage Range: 9–15V.
- Rating Systems: SAE, DIN, EN, IEC, and CA.
- SAE CCA Range: 200–950A.
- DIN CCA Range: 105–600A.
- EN CCA Range: 185–900A.
- IEC CCA Range: 125–710A.
- CA/MCA Range: 250–1190A.
- Operating Temperature: 0–50°C.
- Storage Temperature: -30–70°C.
- Dimensions: 135 × 80 × 35 mm.
- Weight: Approximately 330 g.
Frequently Asked Questions
Does it measure battery amperage directly?
No. It evaluates battery starting capacity using the rated CCA or CA value. It is not a direct current meter.
Can it test the alternator?
Yes. It measures charging-system voltage to help assess alternator performance.
Which batteries are supported?
It supports compatible 12V lead-acid, maintenance-free, AGM, and EFB batteries.
Does it require internal batteries?
The tester is powered through the connected vehicle battery.
