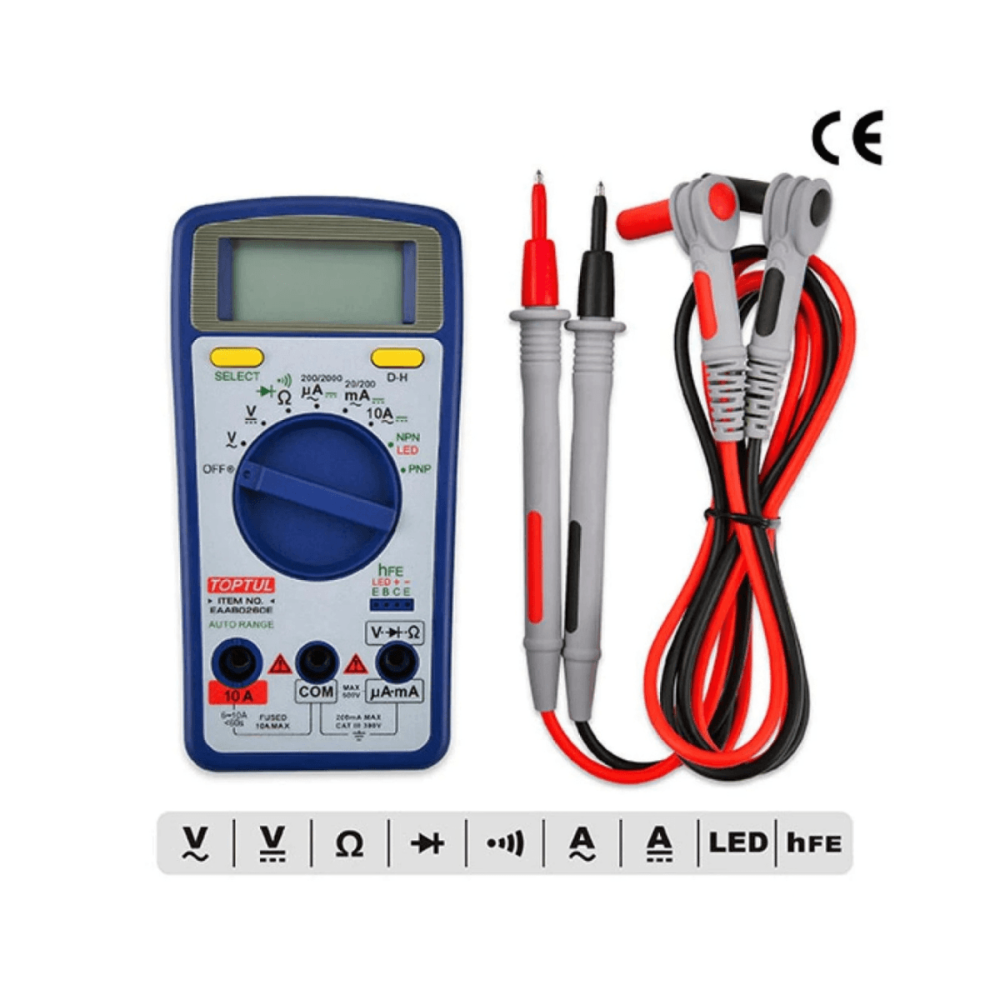

The TOPTUL EAAB0260E Digital Multimeter is designed for electricians, technicians, and routine electrical maintenance.
It measures AC and DC voltage up to 600V, AC and DC current up to 10A, and resistance up to 20MΩ. It also supports diode, continuity, transistor, and LED testing.

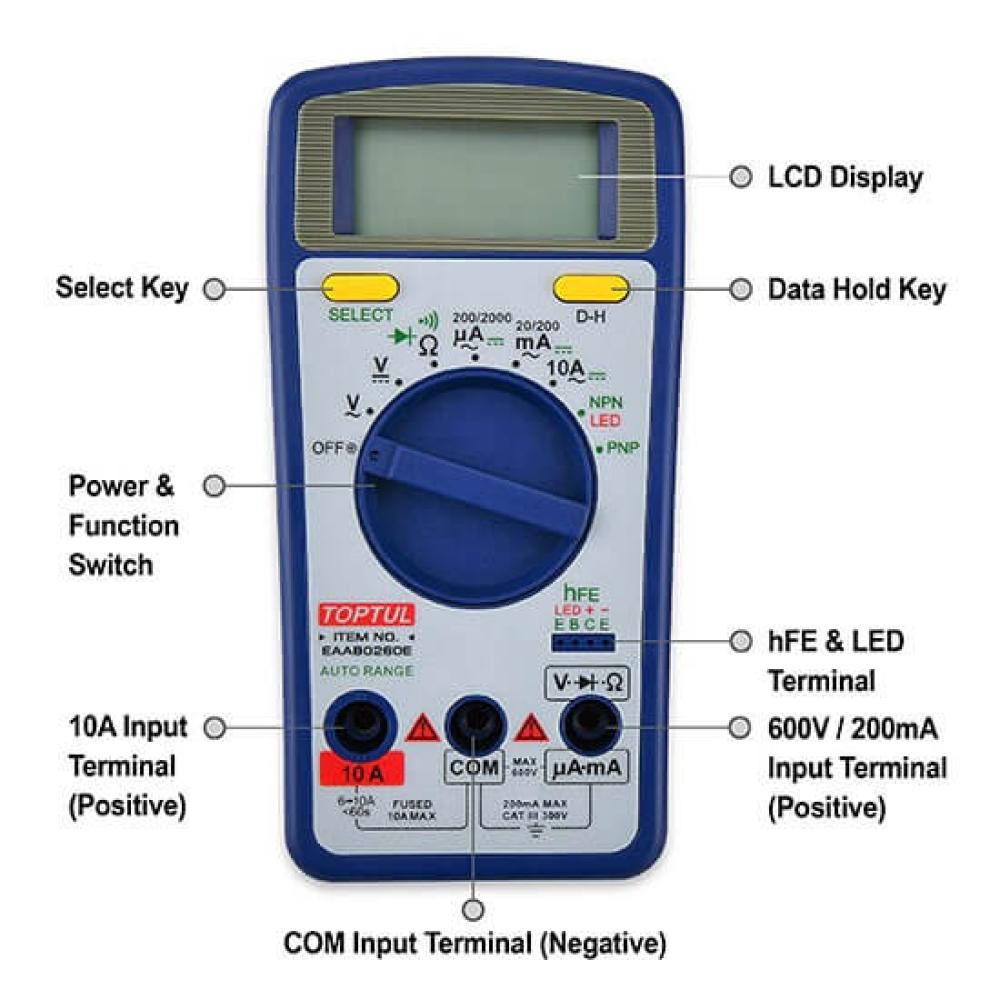

The meter features a 2000-count LCD display, automatic range selection, data hold, a low-battery indicator, and automatic shut-off after 15 minutes.
Key Features
- AC/DC voltage measurement up to 600V.
- AC/DC current measurement up to 10A.
- Resistance measurement up to 20MΩ.
- Diode and continuity testing.
- NPN and PNP transistor testing.
- LED testing.
- 2000-count LCD display.
- Auto range and data hold.
- Automatic shut-off.
- CAT III 300V rating.
- Two AAA batteries included.
Technical Specifications
- Brand: TOPTUL.
- Product Number: EAAB0260E.
- AC Voltage: 2V / 20V / 200V / 600V.
- DC Voltage: 200mV / 2V / 20V / 200V / 600V.
- AC/DC Current: 200µA to 10A.
- Resistance: 200Ω to 20MΩ.
- Display: 2000 Counts.
- Transistor Test: Up to 2000 hFE.
- Safety Rating: CAT III 300V.
- Power Supply: 2 × AAA Batteries.
- Dimensions: 138 × 70 × 32 mm.
- Weight: Approximately 140 g.
Frequently Asked Questions
What is a digital multimeter used for?
It is used to measure voltage, current, and resistance and to test electrical continuity and electronic components.

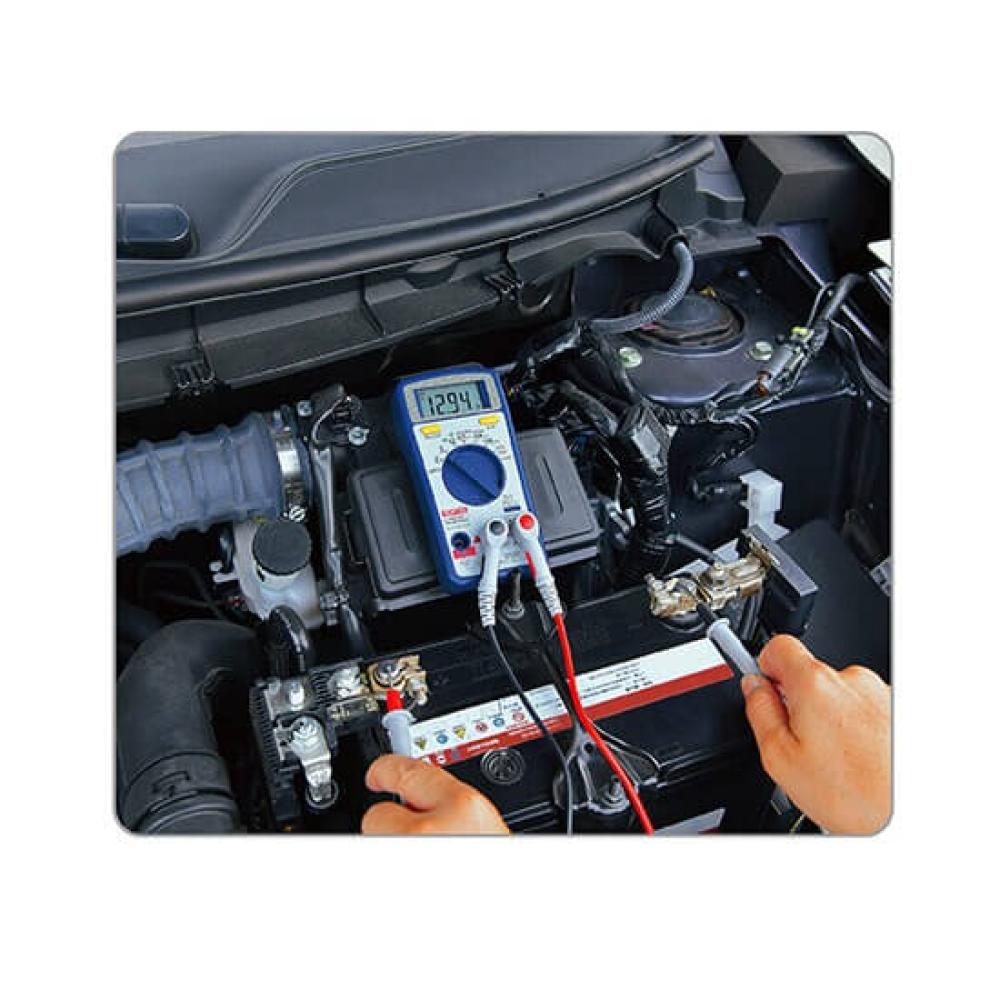

Can it test a car battery?
Yes. It can measure the DC voltage of a 12V battery, but it does not perform a complete battery health or cranking analysis.
What is the difference between a multimeter and a clamp meter?
A multimeter uses test leads for most measurements. A clamp meter can measure current by clamping around one conductor without opening the circuit.
