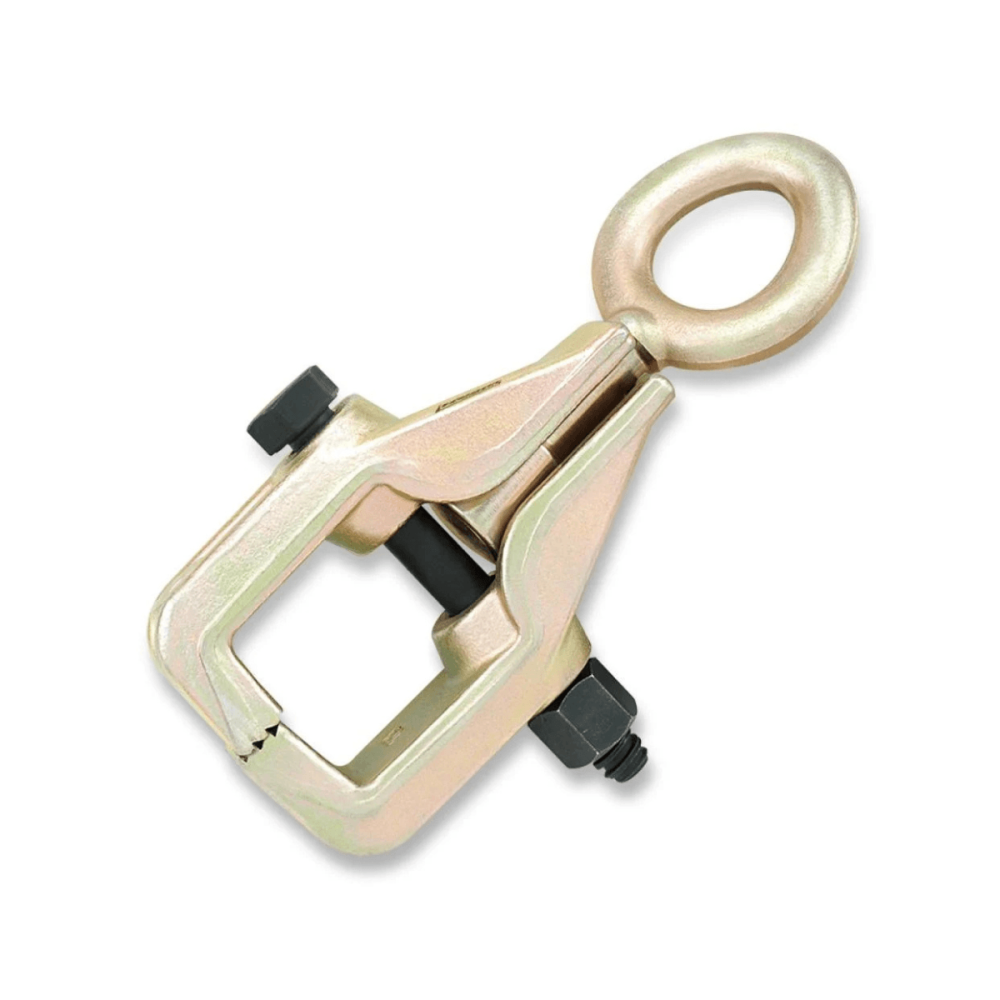

Perform vehicle body pulling and straightening work with the TOPTUL JFDB0303 Auto Body Box Clamp, designed for professional body shops and collision-repair technicians.
Some users may refer to the product as an auto body pulling ring, but its more accurate technical name is a Box Clamp. The clamp attaches securely to a sheet-metal edge or vehicle body section and is then connected to a compatible chain or body-pulling system.
The model uses a single-way pulling configuration, providing a direct attachment point during dent and structural body repair. It also features two differently designed jaw sides, allowing the technician to select the most suitable side for confined spaces and difficult body-panel edges.
The clamp has a pulling capacity of up to 3 tons and is manufactured from drop-forged chrome molybdenum alloy steel for strength and repeated professional use.
Key Features
- Pulling capacity of up to 3 tons.
- Single-way pulling operation.
- Two differently designed jaw sides for confined spaces.
- Strong gripping surface for secure panel attachment.
- Suitable for auto body and vehicle-frame pulling.
- Made from drop-forged chrome molybdenum alloy steel.
- Durable design for repeated professional use.
- Suitable for collision and auto body repair shops.
- Compatible with suitable pulling chains and equipment.
- Genuine TOPTUL auto body tool.
Applications
- Pulling damaged vehicle body sections.
- Repairing dents and metal distortion.
- Gripping and pulling sheet-metal edges.
- Vehicle chassis and body-frame repair.
- Use with vehicle body-straightening racks.
- Use with suitable auto body pulling chains.
- Professional collision and auto body repair work.
Technical Specifications
- Brand: TOPTUL.
- Product Number: JFDB0303.
- Product Type: Auto Body Pull Clamp.
- English Product Name: Box Clamp.
- Pulling Direction: Single-Way Pull.
- Pulling Capacity: 3 Tons.
- Bolt Size: Ø14 mm × 120 mm Long.
- Gripping Surface Width: 37 mm.
- Gripping Surface Depth: 15 mm.
- Jaw Design: Two Different Sides for Confined Spaces.
- Material: Chrome Molybdenum Alloy Steel.
- Manufacturing Method: Drop Forged.
- Recommended Use: Vehicle Body and Frame Pulling.
Package Contents
- 1 × TOPTUL 3-Ton Auto Body Box Clamp.
What Is an Auto Body Pulling Ring?
An auto body pulling ring is a commonly used market term for tools that attach to vehicle sheet metal and connect to a chain or pulling system.

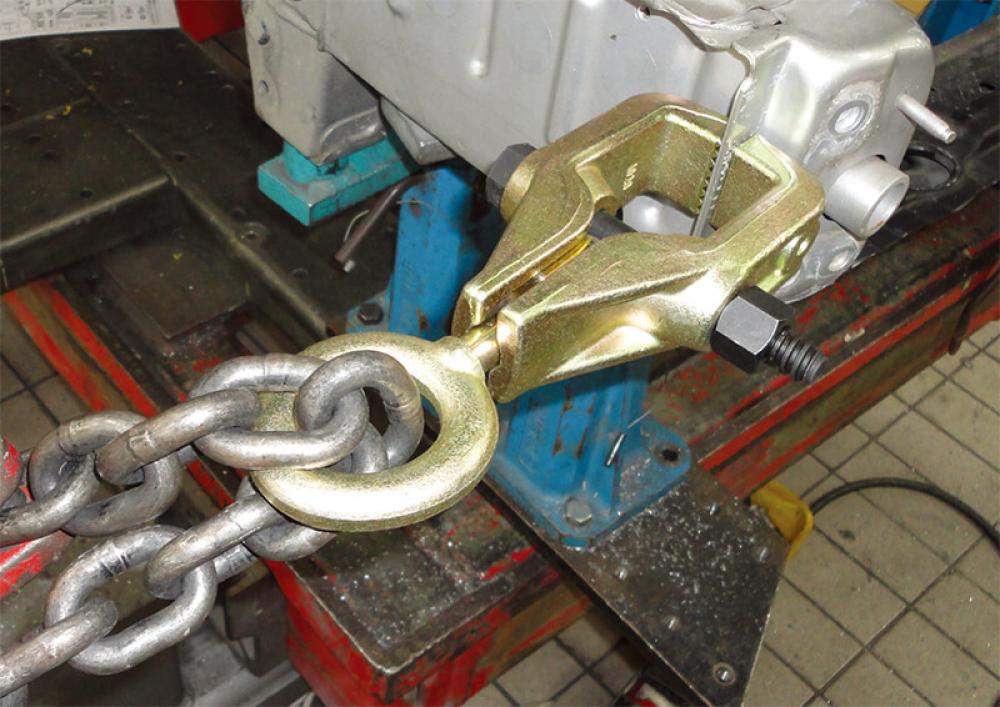

In this case, the product is a Box Clamp with two strong gripping jaws. Once the clamp is securely installed, it can be connected to compatible pulling equipment so that force can be applied gradually to move the damaged metal back into position.
What Is the Benefit of the Two Different Jaw Sides?
The two jaw sides have different designs, allowing the technician to select the most suitable gripping position for the shape of the sheet-metal edge and the available space.
This feature helps the clamp fit into confined areas where a standard clamp with matching jaw sides may be difficult to install.
How to Use the Auto Body Box Clamp
- Inspect the damaged section and determine the required pulling direction.
- Select a strong metal attachment point without corrosion or severe damage.
- Choose the most suitable jaw side for the edge and available space.
- Position the clamp securely on the metal section.
- Tighten the bolt until the gripping surfaces are firmly attached.
- Connect the clamp to a compatible chain or body-pulling system.
- Apply pulling force gradually without sudden shock loading.
- Monitor the clamp and attachment point throughout the operation.
- Never exceed the specified pulling capacity.
- Keep people away from the pulling path and wear appropriate protective equipment.
Frequently Asked Questions
Is this product a pulling ring or a pull clamp?
Pulling ring is a commonly used market term, but the correct technical description of this product is an auto body Box Clamp.
What is the pulling capacity?
The clamp has a pulling capacity of up to 3 tons, and the specified limit must not be exceeded.
Is it suitable for confined spaces?
Yes. The two sides of the jaws have different designs to help the clamp fit restricted body-panel edges and confined areas.
Does it pull in more than one direction?
No. The JFDB0303 is designed for single-way pulling. A separate two-way version is available for applications requiring a different pulling configuration.
Can it be used without a pulling machine?
No. The clamp is an attachment tool and must be connected to a compatible chain, frame rack, or auto body pulling system.
How is it different from the 5-ton small-mouth clamp?
The JFDB0303 is a 3-ton Box Clamp with two differently designed jaw sides. The JFDC0105 is a 5-ton Small Mouth Pull Clamp designed for applications requiring a narrower jaw and higher pulling capacity.
