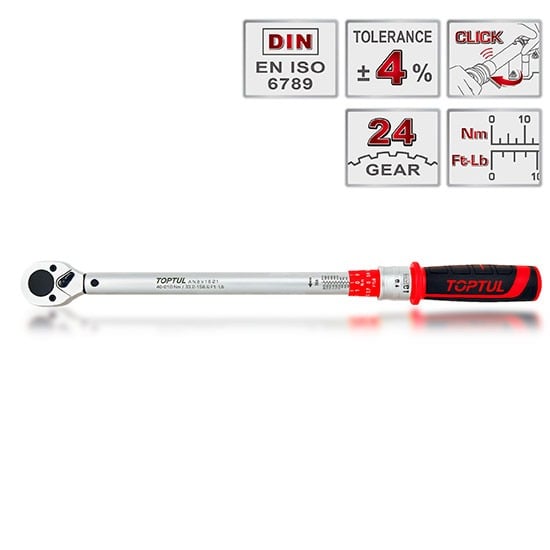

The TOPTUL ANBV0803 Mechanical Torque Wrench is designed for controlled tightening in automotive, mechanical, and workshop applications. It is suitable for tasks that require accurate clockwise torque measurement within a 5–25 Nm range.
Built with a robust chrome molybdenum alloy steel square drive, this torque wrench features a reversible 24 teeth ratchet mechanism for clockwise and counterclockwise operation. Its click system provides a tactile and audible signal when the required torque is reached, while the dual Nm and Ft-Lb scale allows easy reading during adjustment.
Product Contents:
- Mechanical Torque Wrench
Key Features:
- Robust chrome molybdenum alloy steel square drive
- Reversible 24 teeth ratchet mechanism
- Operates in both clockwise and counterclockwise directions
- Designed for measuring torque in clockwise direction only

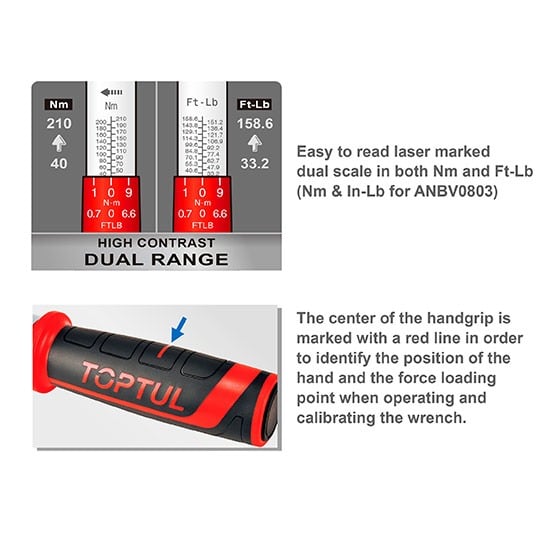

- Easy-to-read dual scale in Nm and Ft-Lb
- Unique spring design for long tool life and repeatability
- Click system with tactile and audible signal
- Ergonomically designed non-slip grip handle

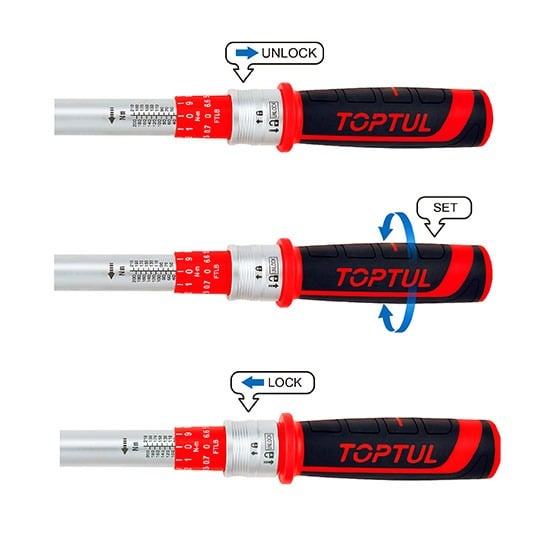

- Quick torque adjustment by turning the handle
- Torque accuracy tolerance: ±4% CW
- Tested and certified according to DIN EN ISO 6789

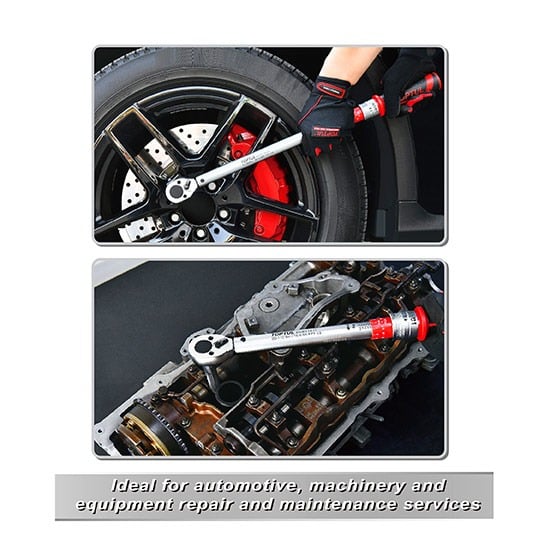

Applications:
- Automotive repair and maintenance
- Controlled tightening of small bolts and fasteners
- Mechanical assembly work
- Workshop torque setting tasks
- Clockwise torque measurement applications
Technical Specifications:
- Brand: TOPTUL
- Item No.: ANBV0803
- Product Type: Mechanical Torque Wrench
- Drive: 1/4"
- Capacity: 5-25 Nm
- Length: 295 mm
- Square Drive Material: Chrome Molybdenum Alloy Steel
- Ratchet Mechanism: Reversible 24 Teeth
- Operation Direction: Clockwise / Counterclockwise
- Torque Measuring Direction: Clockwise only
- Scale: Dual scale in Nm and Ft-Lb
- Torque Adjustment: By turning the handle
- Torque Accuracy Tolerance: ±4% CW
- Certification: DIN EN ISO 6789
