The TOPTUL 4-Piece Petrol Engine Compression Tester Kit is designed to measure cylinder compression and support the diagnosis of internal gasoline engine problems.
Compression testing helps automotive technicians evaluate cylinder sealing and identify possible issues involving piston rings, intake or exhaust valves, cylinder head gaskets, or other sources of compression loss. Test readings should always be compared with the vehicle manufacturer’s specifications.
- The kit features a large 2.5-inch pressure gauge with a dual measurement scale of up to 300 PSI or 21 kg/cm². The gauge is protected by a shock-resistant cover and includes a pressure release valve, allowing the user to reset the reading before testing the next cylinder.
It also includes a flexible 13-inch hose with an M14 adapter, an additional M18 adapter, and an 8-inch aluminium extension tube with a universal rubber tip. These components make the kit suitable for a wide range of petrol engine configurations.
The TOPTUL JGAI0402 is ideal for professional automotive workshops, service centers, mechanics, and experienced vehicle owners looking for a reliable gasoline engine compression testing kit.

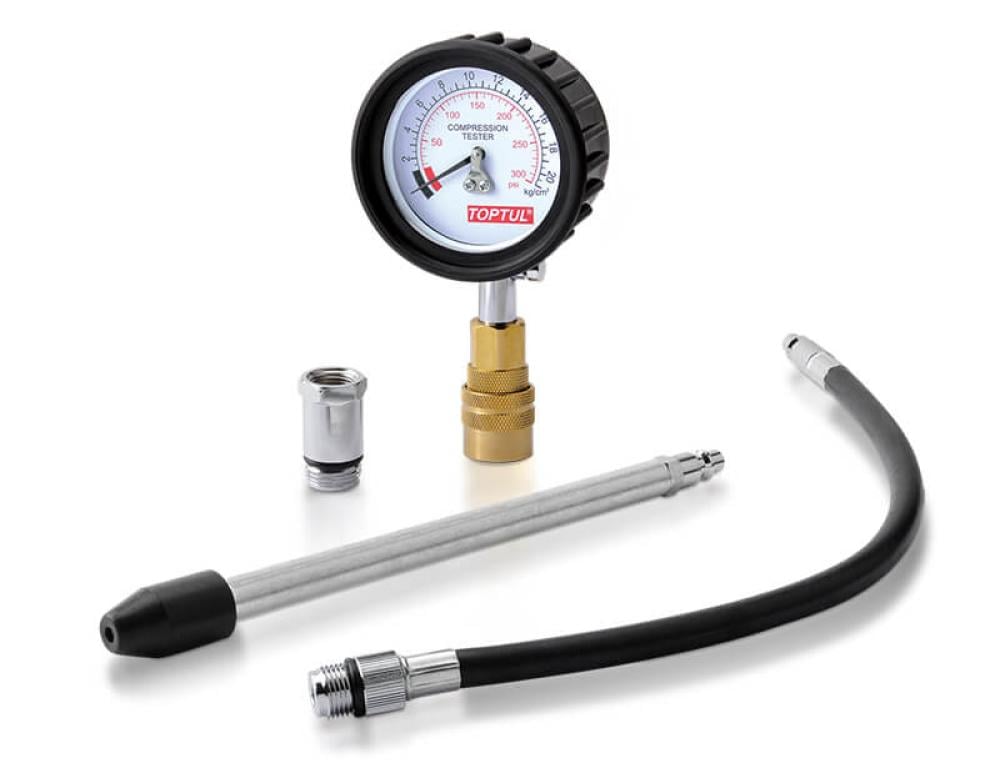

Main Kit Components
The four-piece kit includes:
- 2.5-inch engine compression pressure gauge.
- 13-inch flexible rubber hose with M14 adapter.
- Additional M18 adapter.
- 8-inch aluminium extension tube with universal rubber tip.

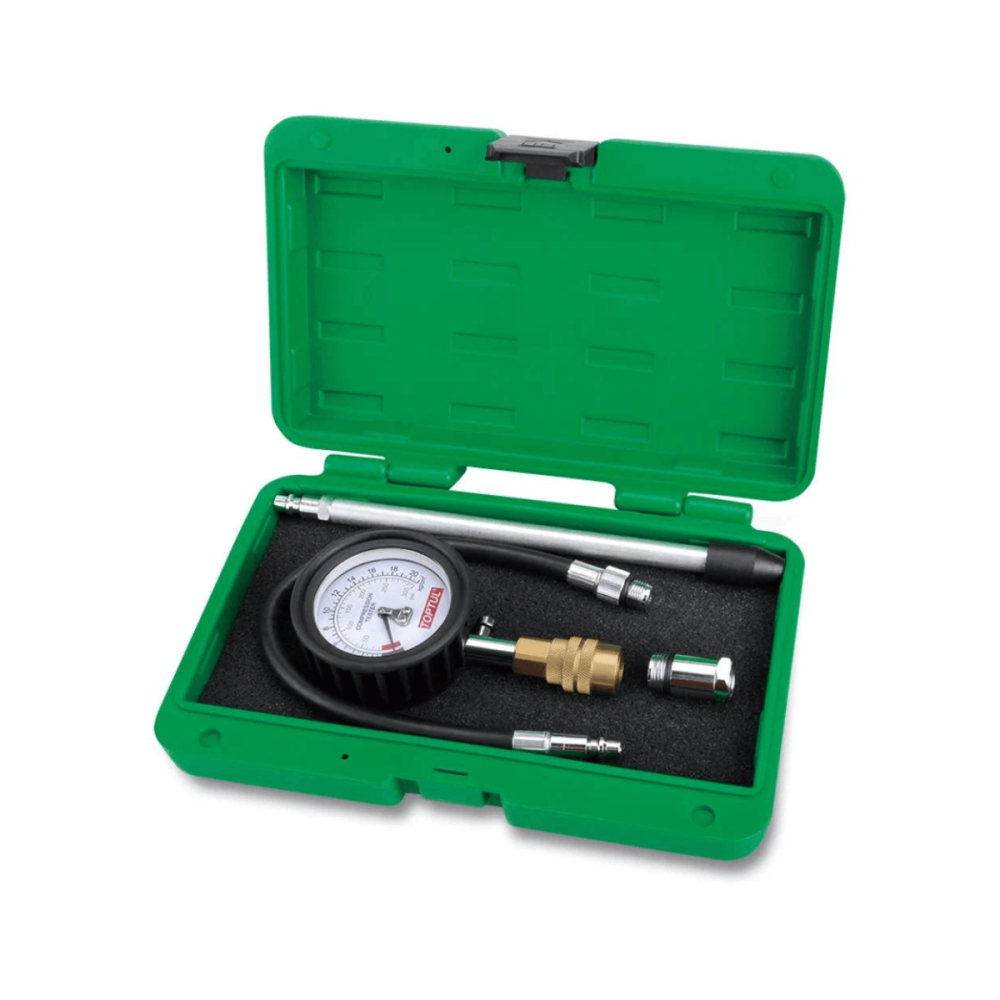

The components are supplied in a practical plastic storage case for improved organization, transport, and protection.
Key Features
- Designed for testing petrol engine cylinder compression.
- Helps identify low or uneven compression between cylinders.
- Large and easy-to-read 2.5-inch gauge.
- Measuring range up to 300 PSI.
- Dual scale in PSI and kg/cm².
- Protective gauge cover for improved impact resistance.
- Built-in pressure release valve for quick gauge reset.
- Flexible 13-inch rubber test hose.
- Includes M14 and M18 spark plug adapters.
- 8-inch aluminium extension tube for deeper plug openings.
- Universal rubber tip for suitable spark plug ports.
- Practical plastic storage case.
- Suitable for professional workshop and advanced personal use.
- Genuine TOPTUL diagnostic tool.
Recommended Applications
- Measuring petrol engine cylinder compression.
- Comparing pressure readings between cylinders.
- Diagnosing low engine performance.
- Supporting the diagnosis of worn piston rings.
- Checking for possible valve sealing problems.
- Identifying signs of cylinder head gasket failure.
- Automotive workshop inspections.
- Engine maintenance and fault diagnosis.
- Professional mechanic and service center use.
Technical Specifications
- Brand: TOPTUL.
- Product Name: Petrol Engine Compression Tester Kit.
- Product Number: JGAI0402.
- Tool Type: Engine Cylinder Compression Tester.
- Compatible Engine Type: Petrol/Gasoline Engines.
- Number of Pieces: 4.
- Pressure Range: 0–300 PSI.
- Secondary Pressure Range: 0–21 kg/cm².
- Gauge Diameter: 2.5 inches.
- Hose Length: 13 inches.
- Adapter Sizes: M14 and M18.
- Extension Tube Length: 8 inches.
- Extension Tube Material: Aluminium.
- Additional Tip: Universal Rubber Tip.
- Storage Case Material: Plastic.
- Case Dimensions: 260 × 170 × 60 mm.
- Recommended Use: Automotive workshops, service centers, and petrol engine diagnostics.
Basic Instructions for Use
Always follow the vehicle manufacturer’s procedures and the relevant safety instructions. Fuel and ignition disabling methods differ between vehicle models.
A simplified testing process is as follows:
- Warm the engine to the recommended operating temperature when permitted.
- Switch off the engine.
- Disable the fuel and ignition systems using the correct vehicle procedure.
- Remove the spark plugs.
- Select the M14 or M18 adapter that matches the spark plug thread.

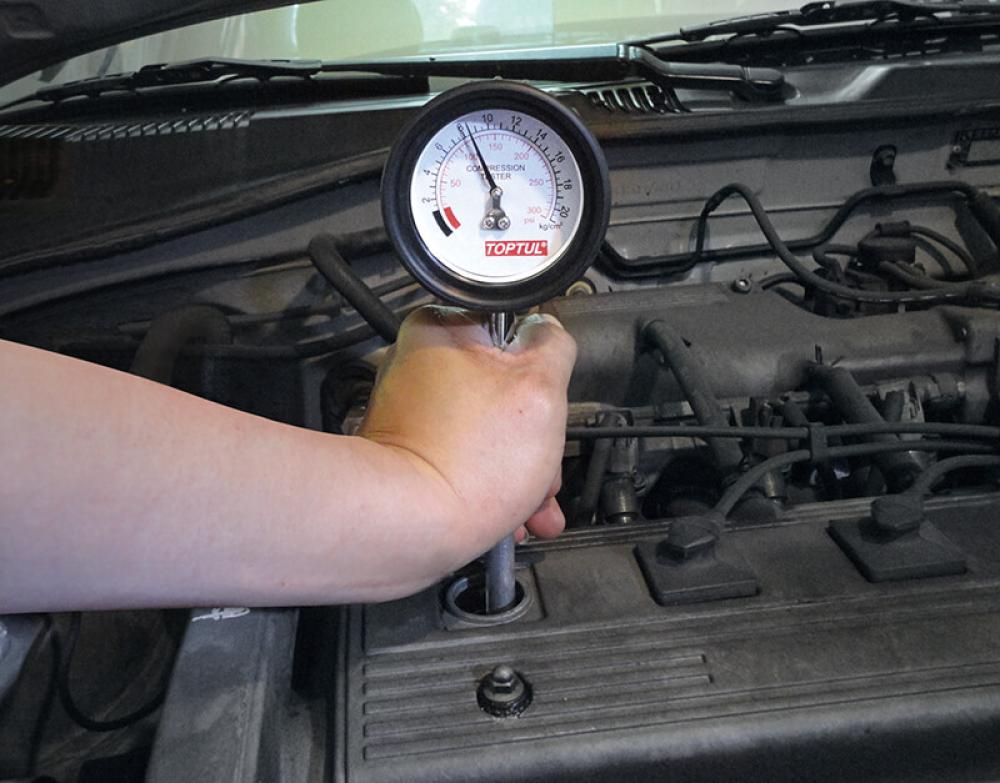

- Secure the tester hose in the spark plug opening.
- Open the throttle according to the recommended test procedure.
- Crank the engine for several revolutions until the gauge reading stabilizes.
- Record the pressure reading.
- Release the pressure using the gauge valve.
- Repeat the process for each remaining cylinder.
- Compare the readings with the manufacturer’s specifications.
The difference between cylinder readings is often as important as the maximum pressure value.
What Is a Petrol Engine Compression Tester?
A petrol engine compression tester is a diagnostic tool that measures the pressure generated inside each engine cylinder during cranking.
The readings help determine whether the cylinders are sealing correctly. Low or uneven compression may indicate internal wear, leakage, or a mechanical fault that requires further diagnosis.
What Problems Can a Compression Test Indicate?
A compression test can help identify signs associated with:
- Worn or damaged piston rings.
- Leaking intake or exhaust valves.
- A damaged cylinder head gasket.
- Leakage between adjacent cylinders.
- Poor combustion chamber sealing.
- Uneven mechanical condition between cylinders.
A compression test alone may not confirm the exact fault. A cylinder leak-down test or additional inspection may be needed.
Frequently Asked Questions
Is this kit suitable for diesel engines?
No. This tester is designed for petrol or gasoline engines. Diesel engines require a higher-pressure tester and different adapters.
What is the pressure range?
The TOPTUL JGAI0402 measures from 0 to 300 PSI, or 0 to 21 kg/cm².
Does the kit fit all petrol engines?
The kit includes M14 and M18 adapters and a universal rubber tip, making it compatible with many petrol engines. Always check the spark plug thread size and access requirements before use.
What causes low compression in one cylinder?
Possible causes include worn piston rings, leaking valves, a damaged head gasket, or cylinder head problems. Additional testing may be required to identify the exact cause.
Should all cylinders have the same compression?
The readings do not need to be perfectly identical, but they should be reasonably close and within the engine manufacturer’s specified range.
Can the test be performed on a cold engine?
Many testing procedures recommend a warm engine, but the correct method depends on the vehicle manufacturer’s instructions and safety requirements.
Where can I buy a petrol engine compression tester online in Saudi Arabia?
The TOPTUL JGAI0402 professional engine compression tester kit is available from Eddaty, a specialist supplier of professional automotive workshop tools and equipment.
Why Choose the TOPTUL Engine Compression Tester Kit?
The TOPTUL kit combines a clear pressure gauge, useful adapter sizes, an extended test tube, and a practical storage case. It is designed for mechanics who need an organized and reliable solution for routine cylinder compression testing.
