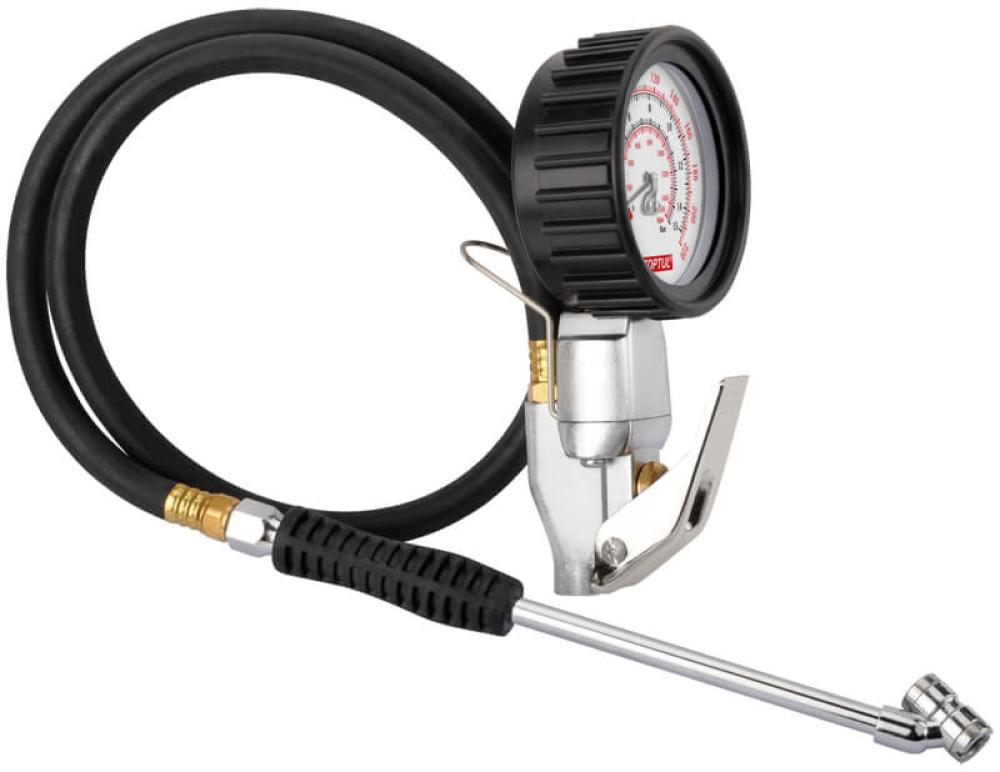

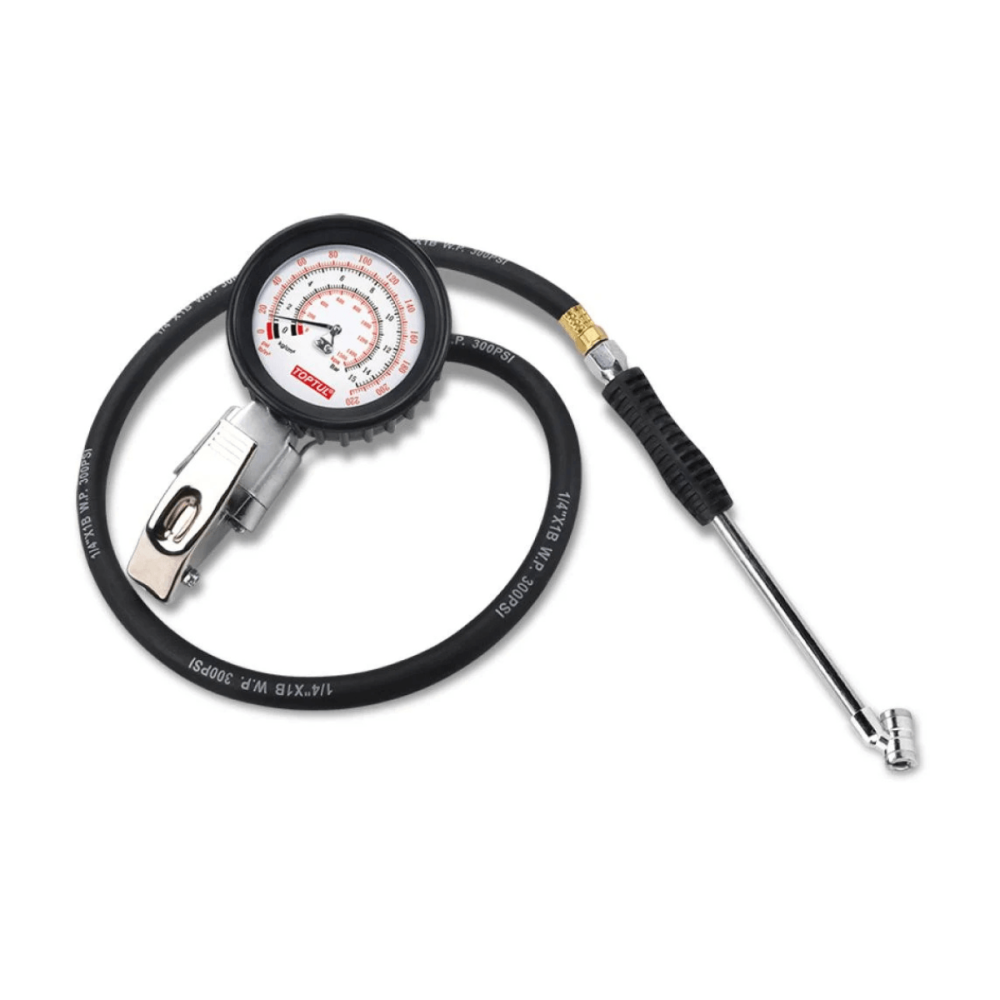

The TOPTUL 3-in-1 Tire Inflator Gauge combines three essential tire service functions in one professional tool: pressure measurement, tire inflation, and excess-air release.
It features a large 3.5-inch analogue gauge for clear and convenient pressure readings. With a measuring range of up to 220 PSI, the tool is suitable for passenger vehicles, trucks, buses, and commercial vehicles that operate at higher tire pressures.
- The gauge body is manufactured from durable cast aluminium and includes heavy-duty brass valves for reliable performance during regular workshop use. A protective rubber cover surrounds the gauge to help protect it from impacts and daily handling.
- The tool includes a flexible 40-inch high-pressure rubber hose and a dual-head air chuck. The dual chuck provides easier access to both outward-facing and inward-facing tire valves, making it especially useful for trucks and dual-wheel vehicles.
For professionals looking for a high-quality tire pressure gauge, the TOPTUL JEAL220B provides an efficient all-in-one solution for checking and adjusting tire pressure.
Key Features
- Three functions in one tool: measure, inflate, and deflate.
- Wide measuring range up to 220 PSI.
- Suitable for cars, trucks, buses, and commercial vehicles.
- Large 3.5-inch gauge for clear pressure readings.
- Displays pressure in PSI, BAR, and KPA.
- Flexible 40-inch high-pressure rubber hose.

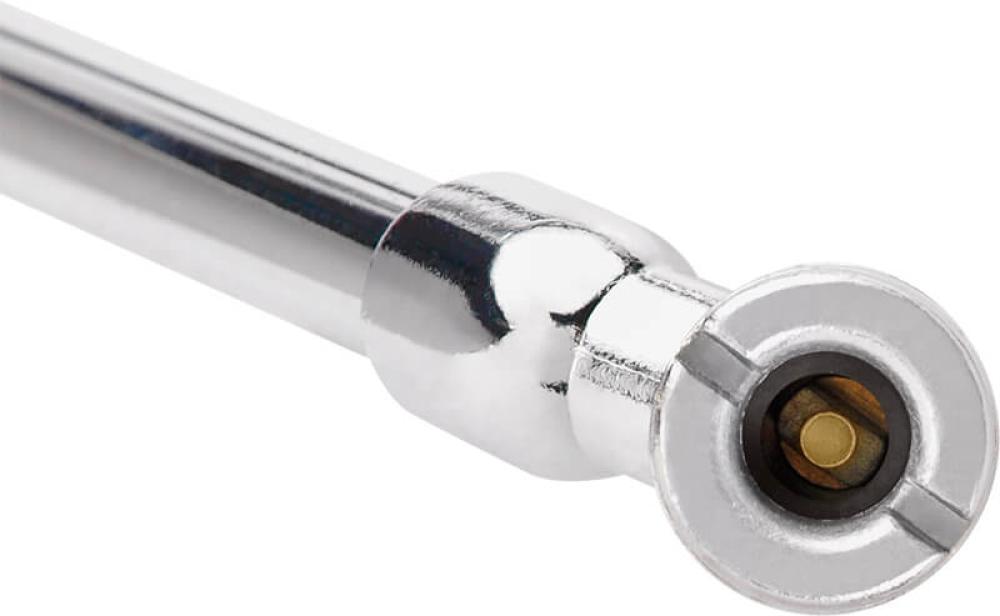

- Dual-head air chuck for improved valve access.
- Ideal for inner and outer valves on dual-wheel vehicles.
- Trigger-controlled inflation.
- Built-in air release function for pressure adjustment.
- Durable cast aluminium body.
- Heavy-duty brass valves.
- Protective rubber gauge cover.
- Standard 1/4-inch air inlet.
- Suitable for professional workshop and tire service use.
- Professional TOPTUL automotive tool.
Three Main Functions
Tire Pressure MeasurementThe large analogue gauge displays the current tire pressure clearly in three different measurement units.
Tire Inflation
Connect the tool to a compatible compressed-air source and use the trigger to add air to the tire.
Excess Air Release
The integrated bleeder function allows the user to release excess pressure and adjust the tire closer to the recommended level.
Recommended Applications
- Measuring passenger car tire pressure.
- Inflating car and SUV tires.
- Measuring and inflating truck tires.
- Servicing bus and commercial vehicle tires.
- Adjusting dual-wheel tire pressure.
- Releasing excess tire pressure.
- Automotive repair workshops.
- Tire repair and service centers.
- Fleet maintenance facilities.
- Garages and service stations.
- Advanced personal vehicle maintenance.
Technical Specifications
- Brand: TOPTUL.
- Product Name: 3-in-1 Tire Inflator Gauge.
- Product Number: JEAL220B.
- Tool Type: Tire Pressure Gauge, Inflator, and Deflator.
- Number of Functions: 3.
- Functions: Pressure Measurement, Inflation, and Deflation.
- PSI Measuring Range: 0–220 PSI.
- BAR Measuring Range: 0–15 BAR.
- KPA Measuring Range: 0–1500 KPA.
- Gauge Diameter: 3.5 inches.
- Hose Length: 40 inches.
- Hose Type: Flexible High-Pressure Rubber Hose.
- Air Chuck Type: Dual Chuck.
- Air Inlet: 1/4 inch.
- Body Material: Cast Aluminium.
- Valve Material: Brass.
- Gauge Protection: Rubber Protective Cover.
- Inflation Control: Trigger Operated.
- Recommended Use: Cars, trucks, buses, workshops, and tire service centers.
Package Contents
- 1 × TOPTUL 3-in-1 Tire Inflator Gauge.
- 1 × 40-Inch High-Pressure Hose.
- 1 × Dual-Head Air Chuck.
What Is a 3-in-1 Tire Inflator Gauge?
A 3-in-1 tire inflator gauge is a tool that measures tire pressure, adds compressed air, and releases excess pressure through one device.
It connects to an air compressor or compatible compressed-air system. The chuck is attached to the tire valve, the gauge displays the pressure, and the trigger or bleeder is used to adjust it.
What Is the Benefit of a Dual-Head Chuck?
A dual-head chuck provides two valve connection directions, making it easier to reach valves facing inward or outward.
It is particularly useful for:
- Dual-wheel truck tires.
- Inner tire valves.
- Buses and commercial vehicles.
- Deep or restricted valve positions.
How to Use the Tire Inflator Gauge
- Connect the gauge to a compatible compressed-air supply.
- Find the vehicle manufacturer’s recommended tire pressure.
- Remove the tire valve cap.
- Secure the dual-head chuck onto the valve.
- Read the current pressure on the gauge.
- Press the trigger to add air when needed.
- Stop inflation and check the pressure again.
- Release excess air if the pressure is too high.
- Recheck the reading until the correct pressure is reached.
- Disconnect the chuck and replace the valve cap.
For best results, check tire pressure when the tires are cold.
Frequently Asked Questions
Does this tool only measure tire pressure?
No. It measures pressure, inflates the tire, and releases excess air.
Is the TOPTUL JEAL220B suitable for trucks?
Yes. Its 220 PSI range, long hose, and dual-head chuck make it suitable for trucks, buses, and commercial vehicles.
Can it be used for passenger car tires?
Yes. It can be used for passenger cars, SUVs, and other vehicles when connected to a compatible compressed-air supply.
Does it work without an air compressor?
The gauge can display existing tire pressure, but the inflation function requires a compressed-air source.
Why is the 40-inch hose useful?
The long hose provides greater working flexibility and makes it easier to reach tires and valves without holding the gauge directly beside the wheel.
Is the dual chuck suitable for dual wheels?
Yes. It is designed to improve access to both inner and outer tire valves on dual-wheel vehicles.
What is the difference between a handheld gauge and this inflator gauge?
A basic handheld gauge usually measures pressure only. This model also inflates the tire and releases excess pressure when connected to a compressed-air source.
Can it release excess tire pressure?
Yes. The built-in air release function allows controlled pressure reduction.
Which pressure units does it display?
The gauge displays PSI, BAR, and KPA.
Why Choose the TOPTUL 3-in-1 Tire Inflator Gauge?
The TOPTUL JEAL220B combines a high measuring range, large gauge, extended hose, dual chuck, and three essential tire service functions.
It is a practical choice for mechanics and tire service professionals who need one tool for checking, inflating, and adjusting tire pressure efficiently.
