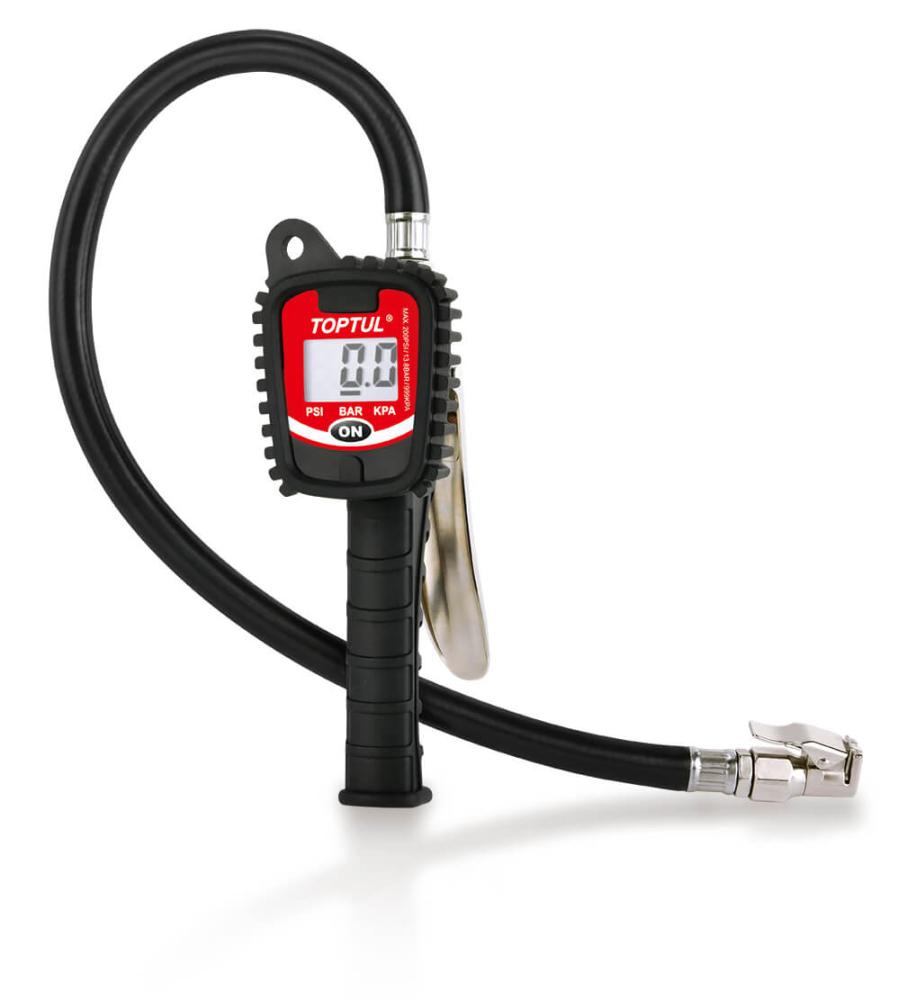

The TOPTUL JEBL200A 3-Function Digital Tire Inflator combines tire pressure measurement, inflation, and deflation in one practical professional tool.
It features a large, easy-to-read LCD display and provides pressure readings in PSI, BAR, and KPA. Its measuring range reaches 200 PSI, making it suitable for passenger cars, motorcycles, SUVs, and various commercial vehicle applications within the tool’s pressure range.
The inflator is built with a durable aluminium body and an ergonomic handle for regular workshop use. It includes a flexible 20-inch high-pressure PVC hose with a clip-on tire chuck for quick and secure connection to the tire valve.

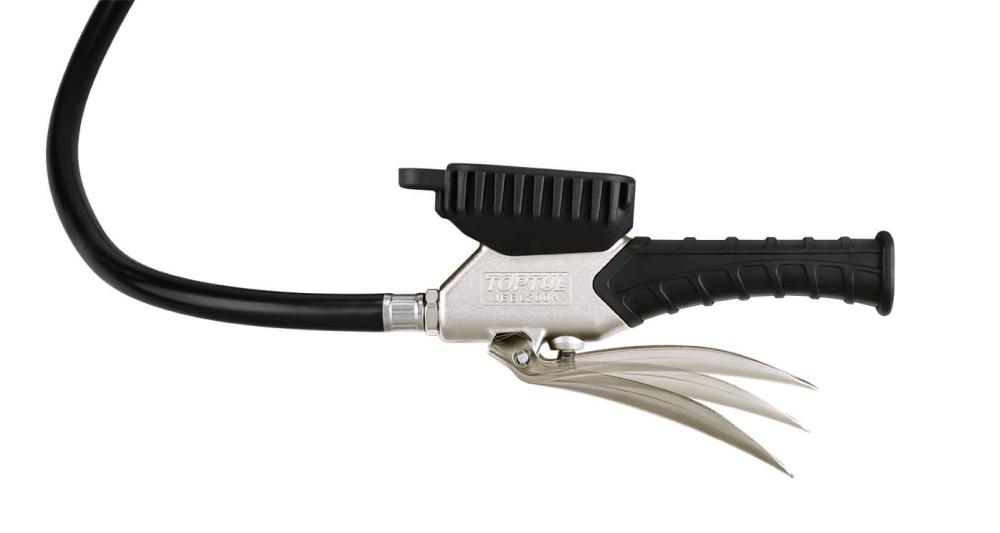

A two-position trigger allows the operator to inflate the tire or release excess pressure. The automatic shut-off function turns the display off after 180 seconds to help preserve battery life.
The TOPTUL digital tire inflator is suitable for automotive workshops, tire service centers, fleet maintenance, and personal garage use.
Key Features
- Three functions in one tool: inflate, deflate, and measure.
- Large and clear LCD display.
- Measuring range up to 200 PSI.
- Measurement accuracy of ±2%.
- Displays PSI, BAR, and KPA.
- Flexible 20-inch high-pressure PVC hose.
- Clip-on tire chuck for secure valve connection.
- Two-position trigger for inflation and deflation.
- Automatic shut-off after 180 seconds.
- Durable aluminium body.
- Ergonomic handle for regular use.
- Protective rubber display sleeve.
- CR2032 battery included.
- Suitable for professional and personal use.
- Professional TOPTUL tire service tool.
Three Main Functions
Tire Pressure Measurement
The digital LCD display shows the current tire pressure clearly, allowing the operator to compare it with the vehicle manufacturer’s recommended pressure.
Tire Inflation
When connected to a compatible compressed-air source, the trigger can be used to add air to the tire.
Excess Air Release
The deflation function allows the user to release excess pressure and adjust the tire to the required level.
Recommended Applications
- Measuring passenger car tire pressure.
- Inflating and deflating car tires.
- Checking motorcycle tire pressure.
- SUV and 4×4 tire maintenance.
- Commercial vehicle tire checks.
- Automotive workshop use.
- Tire repair and service centers.
- Fleet maintenance.
- Routine tire pressure inspections.
- Home garage use with a compatible compressor.
Technical Specifications
- Brand: TOPTUL.
- Product Name: 3-Function Digital Tire Inflator.
- Product Number: JEBL200A.
- Tool Type: Digital Tire Pressure Gauge, Inflator, and Deflator.
- Number of Functions: 3.
- Functions: Pressure Measurement, Inflation, and Deflation.
- PSI Measuring Range: 0–200 PSI.
- BAR Measuring Range: 0–13.8 BAR.
- KPA Measuring Range: 0–999 KPA.
- Maximum Pressure: 232 PSI.
- Maximum Pressure in BAR: 16 BAR.
- Maximum Pressure in KPA: 1600 KPA.
- Measurement Accuracy: ±2%.
- Display Type: Digital LCD.
- Hose Length: 20 inches.
- Hose Type: Flexible High-Pressure PVC Hose.
- Chuck Type: Clip-On Air Tire Chuck.
- Trigger Type: Two-Position Trigger.
- Air Inlet: 1/4 inch.
- Body Material: Aluminium.
- Automatic Shut-Off: After 180 Seconds.
- Battery Type: CR2032.
- Battery Quantity: 1.
- Recommended Use: Cars, motorcycles, workshops, and tire service centers.
Package Contents
- 1 × TOPTUL Digital Tire Inflator Gauge.
- 1 × 20-Inch High-Pressure Flexible Hose.
- 1 × CR2032 Battery.
What Is a Digital Tire Inflator Gauge?
A digital tire inflator gauge is a tool used to measure tire pressure and display the reading electronically on an LCD screen.
This model also allows the operator to inflate the tire and release excess air when connected to a compatible compressed-air source.

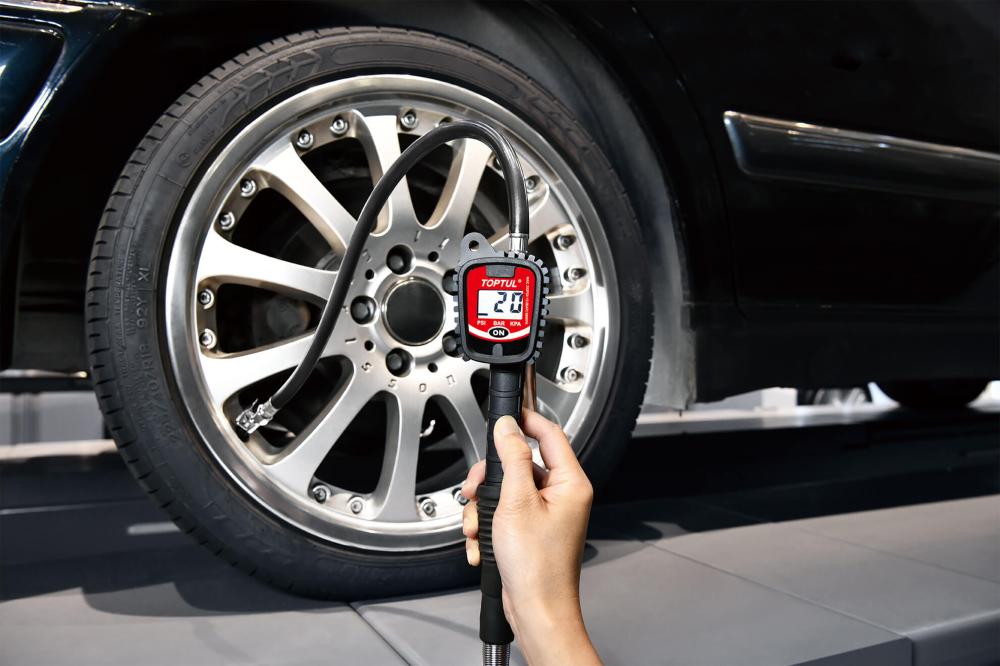

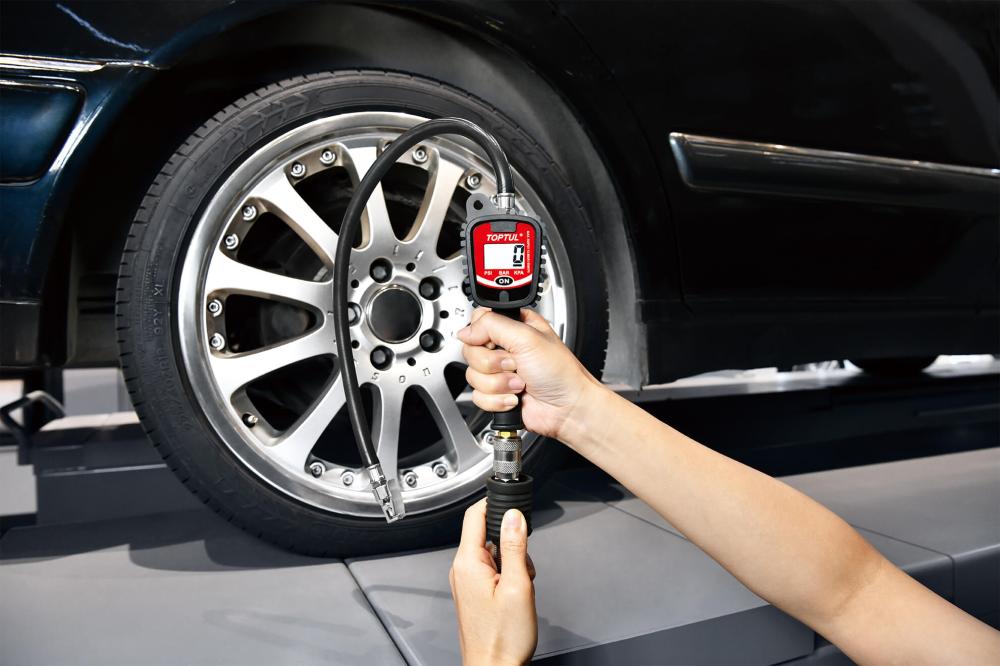

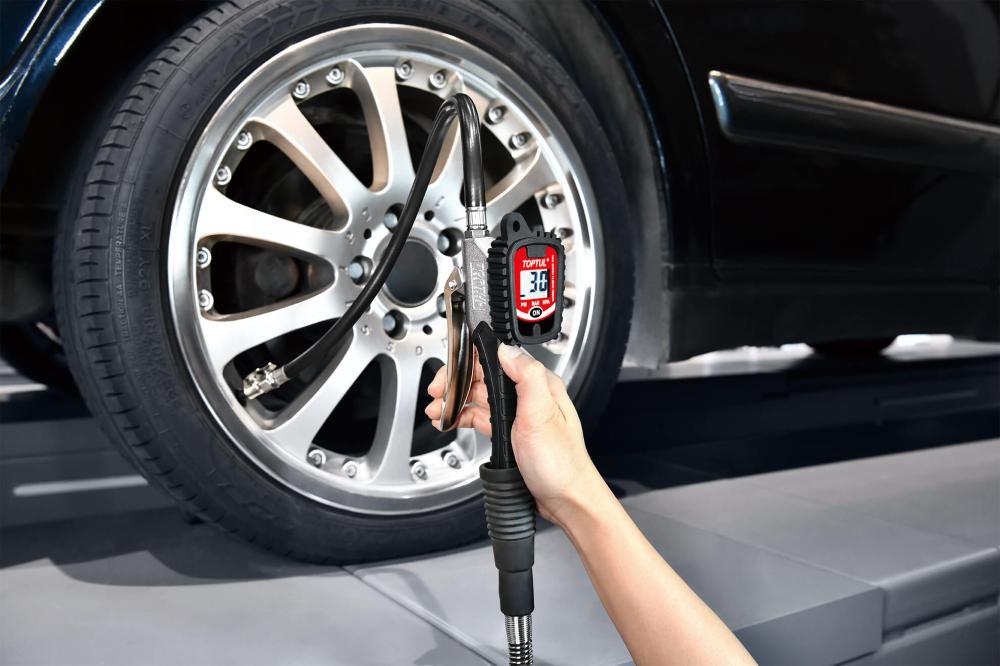

How to Use the Digital Tire Inflator
- Confirm that the battery is installed and the display is working.
- Connect the tool to a compatible compressed-air source.
- Find the vehicle manufacturer’s recommended tire pressure.
- Remove the tire valve cap.

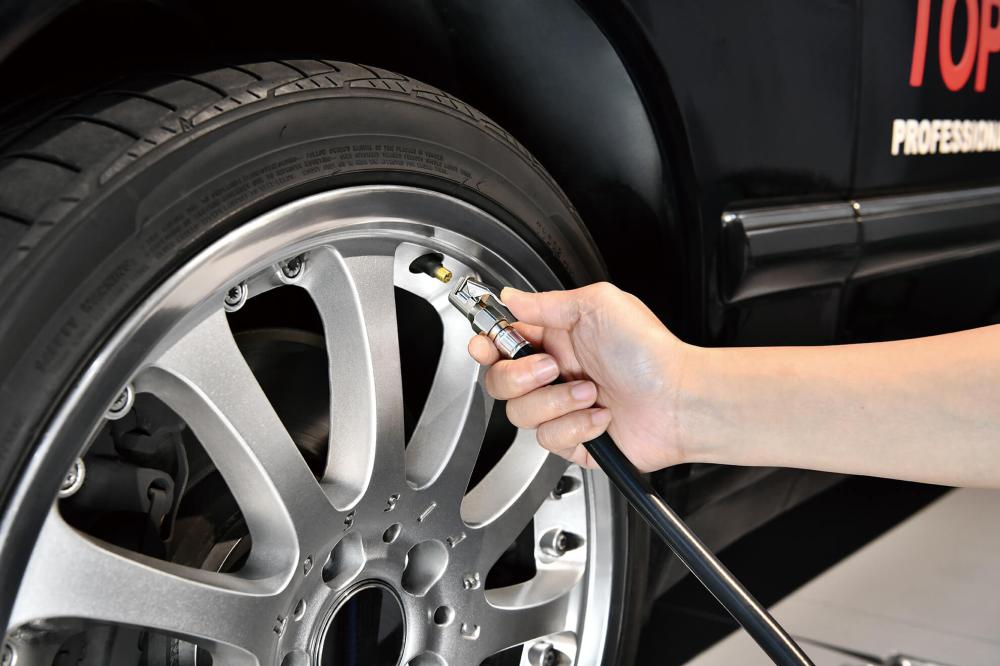

- Secure the clip-on chuck to the valve.
- Read the current pressure on the LCD screen.
- Use the trigger to add air when the pressure is low.
- Release excess air when the pressure is too high.
- Recheck the reading until the correct pressure is reached.
- Disconnect the chuck and replace the valve cap.
For improved accuracy, check tire pressure when the tires are cold.
Digital vs. Analogue Tire Pressure Gauge
A digital gauge displays the pressure as a clear numerical value on an LCD screen, making it easy to read.
An analogue gauge uses a mechanical pointer and does not require a battery. The best option depends on the user’s preferred display and working conditions.
Frequently Asked Questions
Does the tool only measure tire pressure?
No. It measures pressure, inflates the tire, and releases excess air.
Does it require an air compressor?
The inflation function requires a compatible compressed-air source. Pressure measurement uses the air already inside the tire.
What is the measuring range?
The gauge measures from 0 to 200 PSI, 0 to 13.8 BAR, or 0 to 999 KPA.
What is the measurement accuracy?
The specified accuracy is ±2%.
Is it suitable for truck tires?
It can be used with tires that fall within the tool’s measuring and pressure range. Always confirm the tire and vehicle requirements before use.

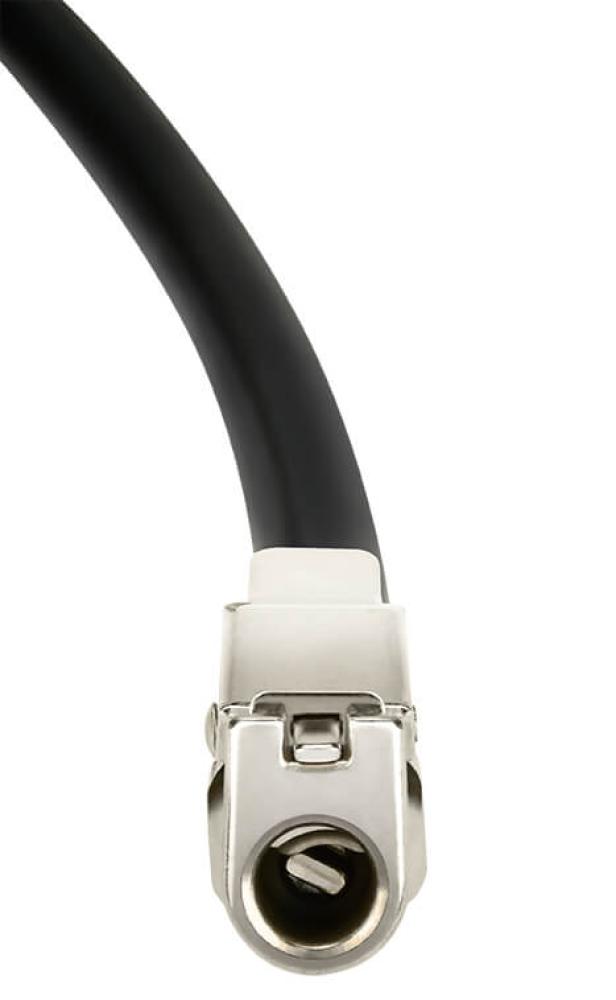

What is the benefit of the clip-on chuck?
The clip-on chuck secures the hose to the valve, allowing easier hands-free connection during pressure measurement and adjustment.
Does the display switch off automatically?
Yes. The tool automatically shuts off after 180 seconds to preserve battery life.
What battery does it use?
It uses one CR2032 battery, which is included.
Can it release excess tire pressure?
Yes. The two-position trigger supports both inflation and deflation.
Is the digital gauge accurate?
The specified measurement accuracy is ±2% when the tool is used correctly and connected securely to the tire valve.
Which pressure units are available?
The display supports PSI, BAR, and KPA.
Where can I find the correct tire pressure?
The recommended pressure is usually printed on the driver’s door-frame label or listed in the vehicle owner’s manual.
Why Choose the TOPTUL Digital Tire Inflator?
- Three essential tire functions in one tool.
- Large digital display.
- Accuracy of ±2%.
- Wide measuring range up to 200 PSI.
- Flexible hose and clip-on chuck.
- Durable aluminium construction.
- Automatic power-saving shut-off.
- Suitable for workshop and personal use.
- Genuine TOPTUL tire service tool.
